1.1 Amorphous Network and Thermal Security

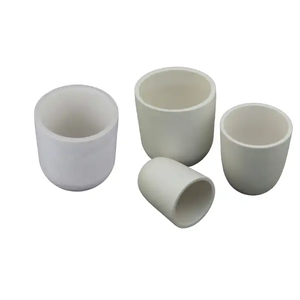

(Quartz Crucibles)

Quartz crucibles are high-temperature containers produced from integrated silica, an artificial kind of silicon dioxide (SiO ₂) stemmed from the melting of all-natural quartz crystals at temperatures going beyond 1700 ° C.

Unlike crystalline quartz, fused silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys phenomenal thermal shock resistance and dimensional stability under rapid temperature level changes.

This disordered atomic framework avoids cleavage along crystallographic aircrafts, making merged silica less susceptible to breaking throughout thermal biking compared to polycrystalline ceramics.

The product displays a reduced coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), among the lowest amongst design materials, allowing it to withstand extreme thermal slopes without fracturing– a crucial residential property in semiconductor and solar battery production.

Fused silica likewise maintains superb chemical inertness against many acids, liquified metals, and slags, although it can be slowly etched by hydrofluoric acid and warm phosphoric acid.

Its high conditioning point (~ 1600– 1730 ° C, depending upon pureness and OH web content) allows sustained procedure at raised temperatures needed for crystal development and steel refining processes.

1.2 Pureness Grading and Micronutrient Control

The efficiency of quartz crucibles is extremely dependent on chemical purity, particularly the focus of metallic contaminations such as iron, salt, potassium, light weight aluminum, and titanium.

Even trace quantities (components per million level) of these contaminants can move right into molten silicon during crystal development, weakening the electric homes of the resulting semiconductor material.

High-purity qualities made use of in electronic devices manufacturing generally contain over 99.95% SiO TWO, with alkali steel oxides limited to less than 10 ppm and transition metals listed below 1 ppm.

Contaminations originate from raw quartz feedstock or processing equipment and are lessened via careful choice of mineral resources and filtration methods like acid leaching and flotation protection.

Furthermore, the hydroxyl (OH) material in integrated silica affects its thermomechanical actions; high-OH kinds offer better UV transmission yet lower thermal stability, while low-OH versions are chosen for high-temperature applications due to lowered bubble development.

( Quartz Crucibles)

2. Production Refine and Microstructural Layout

2.1 Electrofusion and Creating Methods

Quartz crucibles are mostly created via electrofusion, a procedure in which high-purity quartz powder is fed into a rotating graphite mold within an electric arc furnace.

An electric arc generated between carbon electrodes melts the quartz particles, which strengthen layer by layer to form a smooth, thick crucible shape.

This approach generates a fine-grained, uniform microstructure with minimal bubbles and striae, essential for uniform warm circulation and mechanical stability.

Alternative methods such as plasma fusion and flame fusion are made use of for specialized applications calling for ultra-low contamination or details wall surface thickness accounts.

After casting, the crucibles undergo controlled air conditioning (annealing) to ease internal stress and anxieties and protect against spontaneous fracturing throughout solution.

Surface ending up, including grinding and polishing, makes sure dimensional precision and minimizes nucleation sites for undesirable condensation during use.

2.2 Crystalline Layer Engineering and Opacity Control

A specifying attribute of contemporary quartz crucibles, particularly those utilized in directional solidification of multicrystalline silicon, is the engineered inner layer structure.

Throughout manufacturing, the internal surface area is often treated to advertise the formation of a slim, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon initial home heating.

This cristobalite layer works as a diffusion obstacle, minimizing straight communication between liquified silicon and the underlying fused silica, therefore reducing oxygen and metallic contamination.

Furthermore, the visibility of this crystalline phase enhances opacity, enhancing infrared radiation absorption and advertising more consistent temperature level circulation within the thaw.

Crucible developers meticulously balance the thickness and connection of this layer to stay clear of spalling or fracturing because of volume modifications throughout stage changes.

3. Useful Performance in High-Temperature Applications

3.1 Function in Silicon Crystal Growth Processes

Quartz crucibles are indispensable in the production of monocrystalline and multicrystalline silicon, acting as the main container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).

In the CZ procedure, a seed crystal is dipped right into molten silicon held in a quartz crucible and slowly drew upward while revolving, permitting single-crystal ingots to form.

Although the crucible does not directly call the growing crystal, interactions in between liquified silicon and SiO two wall surfaces bring about oxygen dissolution right into the melt, which can influence provider lifetime and mechanical toughness in finished wafers.

In DS processes for photovoltaic-grade silicon, massive quartz crucibles enable the controlled cooling of countless kilograms of molten silicon right into block-shaped ingots.

Below, coatings such as silicon nitride (Si five N ₄) are put on the inner surface to prevent bond and promote simple release of the strengthened silicon block after cooling down.

3.2 Deterioration Systems and Life Span Limitations

Regardless of their robustness, quartz crucibles weaken during duplicated high-temperature cycles as a result of several interrelated devices.

Thick circulation or contortion takes place at extended direct exposure above 1400 ° C, causing wall surface thinning and loss of geometric honesty.

Re-crystallization of fused silica right into cristobalite produces inner stress and anxieties as a result of volume expansion, potentially creating cracks or spallation that infect the thaw.

Chemical disintegration arises from decrease responses in between liquified silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), generating volatile silicon monoxide that leaves and deteriorates the crucible wall.

Bubble formation, driven by caught gases or OH groups, even more jeopardizes structural strength and thermal conductivity.

These destruction paths limit the number of reuse cycles and necessitate exact procedure control to optimize crucible life expectancy and item yield.

4. Arising Developments and Technical Adaptations

4.1 Coatings and Composite Adjustments

To improve performance and durability, progressed quartz crucibles include useful finishings and composite structures.

Silicon-based anti-sticking layers and doped silica layers improve release attributes and decrease oxygen outgassing during melting.

Some manufacturers integrate zirconia (ZrO TWO) particles into the crucible wall to boost mechanical stamina and resistance to devitrification.

Study is ongoing right into fully clear or gradient-structured crucibles developed to maximize radiant heat transfer in next-generation solar furnace designs.

4.2 Sustainability and Recycling Difficulties

With increasing need from the semiconductor and solar markets, lasting use of quartz crucibles has come to be a priority.

Spent crucibles contaminated with silicon residue are hard to reuse because of cross-contamination threats, causing substantial waste generation.

Initiatives concentrate on creating reusable crucible liners, boosted cleansing methods, and closed-loop recycling systems to recoup high-purity silica for secondary applications.

As device performances require ever-higher material purity, the role of quartz crucibles will continue to progress through advancement in products science and procedure design.

In summary, quartz crucibles represent an important user interface in between basic materials and high-performance digital products.

Their special combination of pureness, thermal durability, and architectural layout allows the manufacture of silicon-based innovations that power contemporary computing and renewable resource systems.

5. Supplier

Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials such as Alumina Ceramic Balls. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.(nanotrun@yahoo.com)
