1. The Material Structure and Crystallographic Identity of Alumina Ceramics
1.1 Atomic Design and Phase Stability

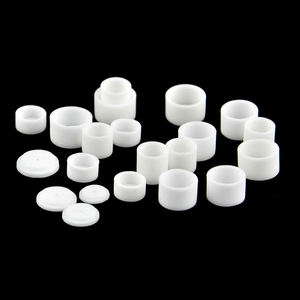

(Alumina Ceramics)
Alumina ceramics, mainly composed of aluminum oxide (Al two O ₃), represent among one of the most extensively utilized courses of innovative porcelains as a result of their extraordinary balance of mechanical toughness, thermal resilience, and chemical inertness.
At the atomic level, the efficiency of alumina is rooted in its crystalline framework, with the thermodynamically stable alpha stage (α-Al ₂ O SIX) being the leading type used in engineering applications.
This stage adopts a rhombohedral crystal system within the hexagonal close-packed (HCP) lattice, where oxygen anions develop a dense plan and light weight aluminum cations inhabit two-thirds of the octahedral interstitial websites.
The resulting framework is very secure, contributing to alumina’s high melting factor of about 2072 ° C and its resistance to disintegration under extreme thermal and chemical problems.
While transitional alumina phases such as gamma (γ), delta (δ), and theta (θ) exist at lower temperature levels and display greater area, they are metastable and irreversibly transform right into the alpha phase upon home heating over 1100 ° C, making α-Al ₂ O ₃ the exclusive phase for high-performance architectural and practical elements.
1.2 Compositional Grading and Microstructural Design
The homes of alumina porcelains are not repaired however can be tailored through managed variations in pureness, grain dimension, and the addition of sintering help.
High-purity alumina (≥ 99.5% Al ₂ O TWO) is utilized in applications demanding maximum mechanical stamina, electric insulation, and resistance to ion diffusion, such as in semiconductor handling and high-voltage insulators.
Lower-purity grades (ranging from 85% to 99% Al ₂ O FOUR) commonly integrate secondary stages like mullite (3Al ₂ O FIVE · 2SiO ₂) or glazed silicates, which boost sinterability and thermal shock resistance at the expense of firmness and dielectric performance.
An essential factor in performance optimization is grain dimension control; fine-grained microstructures, attained via the enhancement of magnesium oxide (MgO) as a grain growth inhibitor, substantially improve crack durability and flexural stamina by restricting fracture breeding.
Porosity, also at reduced degrees, has a damaging impact on mechanical honesty, and completely dense alumina ceramics are generally produced via pressure-assisted sintering techniques such as hot pressing or hot isostatic pushing (HIP).
The interplay in between structure, microstructure, and handling specifies the useful envelope within which alumina porcelains run, allowing their use throughout a large spectrum of industrial and technical domain names.
( Alumina Ceramics)
2. Mechanical and Thermal Efficiency in Demanding Environments
2.1 Toughness, Hardness, and Use Resistance
Alumina ceramics display an one-of-a-kind mix of high solidity and modest fracture toughness, making them ideal for applications including abrasive wear, disintegration, and impact.
With a Vickers solidity commonly ranging from 15 to 20 GPa, alumina rankings among the hardest engineering materials, surpassed only by ruby, cubic boron nitride, and particular carbides.
This severe hardness translates right into remarkable resistance to scraping, grinding, and fragment impingement, which is made use of in elements such as sandblasting nozzles, reducing tools, pump seals, and wear-resistant linings.
Flexural stamina worths for thick alumina range from 300 to 500 MPa, relying on pureness and microstructure, while compressive toughness can surpass 2 GPa, permitting alumina parts to endure high mechanical loads without contortion.
Despite its brittleness– an usual attribute amongst ceramics– alumina’s efficiency can be enhanced via geometric layout, stress-relief functions, and composite support methods, such as the consolidation of zirconia fragments to generate change toughening.
2.2 Thermal Actions and Dimensional Stability
The thermal buildings of alumina porcelains are main to their usage in high-temperature and thermally cycled settings.
With a thermal conductivity of 20– 30 W/m · K– higher than many polymers and comparable to some steels– alumina effectively dissipates warmth, making it suitable for heat sinks, protecting substratums, and heater parts.
Its reduced coefficient of thermal development (~ 8 × 10 ⁻⁶/ K) ensures very little dimensional modification during heating and cooling, minimizing the threat of thermal shock splitting.
This security is especially beneficial in applications such as thermocouple protection tubes, spark plug insulators, and semiconductor wafer managing systems, where exact dimensional control is vital.
Alumina keeps its mechanical honesty up to temperatures of 1600– 1700 ° C in air, past which creep and grain boundary sliding may launch, depending upon pureness and microstructure.
In vacuum or inert environments, its efficiency extends also additionally, making it a favored product for space-based instrumentation and high-energy physics experiments.
3. Electrical and Dielectric Qualities for Advanced Technologies
3.1 Insulation and High-Voltage Applications
One of the most considerable useful qualities of alumina porcelains is their impressive electric insulation capability.
With a quantity resistivity surpassing 10 ¹⁴ Ω · centimeters at area temperature and a dielectric strength of 10– 15 kV/mm, alumina serves as a reputable insulator in high-voltage systems, consisting of power transmission devices, switchgear, and electronic packaging.
Its dielectric constant (εᵣ ≈ 9– 10 at 1 MHz) is relatively secure across a wide regularity variety, making it appropriate for use in capacitors, RF components, and microwave substrates.
Low dielectric loss (tan δ < 0.0005) ensures minimal energy dissipation in rotating current (AIR CONDITIONER) applications, boosting system efficiency and lowering heat generation.
In printed circuit card (PCBs) and hybrid microelectronics, alumina substrates supply mechanical assistance and electrical seclusion for conductive traces, allowing high-density circuit combination in severe environments.
3.2 Efficiency in Extreme and Sensitive Settings
Alumina porcelains are distinctively matched for usage in vacuum, cryogenic, and radiation-intensive environments as a result of their reduced outgassing rates and resistance to ionizing radiation.
In fragment accelerators and fusion activators, alumina insulators are utilized to separate high-voltage electrodes and analysis sensing units without introducing contaminants or deteriorating under extended radiation exposure.
Their non-magnetic nature likewise makes them ideal for applications entailing solid magnetic fields, such as magnetic resonance imaging (MRI) systems and superconducting magnets.
In addition, alumina’s biocompatibility and chemical inertness have resulted in its adoption in medical devices, consisting of dental implants and orthopedic components, where long-lasting security and non-reactivity are critical.
4. Industrial, Technological, and Arising Applications
4.1 Role in Industrial Machinery and Chemical Handling
Alumina porcelains are extensively utilized in commercial equipment where resistance to use, deterioration, and high temperatures is crucial.
Elements such as pump seals, valve seats, nozzles, and grinding media are commonly produced from alumina because of its capability to endure rough slurries, aggressive chemicals, and raised temperature levels.
In chemical handling plants, alumina linings secure activators and pipes from acid and alkali attack, expanding tools life and decreasing upkeep costs.
Its inertness also makes it ideal for usage in semiconductor manufacture, where contamination control is important; alumina chambers and wafer watercrafts are revealed to plasma etching and high-purity gas settings without seeping pollutants.
4.2 Assimilation into Advanced Manufacturing and Future Technologies
Beyond standard applications, alumina porcelains are playing a progressively essential function in arising modern technologies.
In additive production, alumina powders are used in binder jetting and stereolithography (SLA) refines to produce complex, high-temperature-resistant parts for aerospace and power systems.
Nanostructured alumina movies are being discovered for catalytic assistances, sensing units, and anti-reflective layers as a result of their high area and tunable surface chemistry.
Additionally, alumina-based composites, such as Al ₂ O ₃-ZrO Two or Al ₂ O FIVE-SiC, are being developed to get over the intrinsic brittleness of monolithic alumina, offering boosted sturdiness and thermal shock resistance for next-generation structural products.
As sectors remain to push the limits of efficiency and dependability, alumina ceramics remain at the leading edge of product advancement, connecting the space in between structural effectiveness and functional convenience.
In summary, alumina ceramics are not simply a course of refractory products however a foundation of modern-day engineering, enabling technological progression across power, electronics, medical care, and commercial automation.
Their unique combination of residential or commercial properties– rooted in atomic framework and refined via sophisticated handling– ensures their continued importance in both developed and emerging applications.
As product science advances, alumina will most certainly stay a crucial enabler of high-performance systems running beside physical and environmental extremes.
