1. The Product Structure and Crystallographic Identity of Alumina Ceramics
1.1 Atomic Architecture and Phase Security

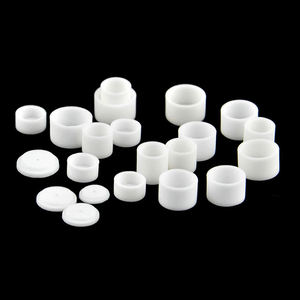

(Alumina Ceramics)
Alumina porcelains, mostly composed of aluminum oxide (Al two O FOUR), stand for among the most extensively utilized courses of innovative ceramics due to their exceptional balance of mechanical toughness, thermal strength, and chemical inertness.
At the atomic degree, the performance of alumina is rooted in its crystalline structure, with the thermodynamically steady alpha phase (α-Al two O THREE) being the dominant type made use of in design applications.
This phase adopts a rhombohedral crystal system within the hexagonal close-packed (HCP) lattice, where oxygen anions create a dense setup and light weight aluminum cations occupy two-thirds of the octahedral interstitial websites.
The resulting structure is highly secure, contributing to alumina’s high melting point of around 2072 ° C and its resistance to decomposition under extreme thermal and chemical problems.
While transitional alumina phases such as gamma (γ), delta (δ), and theta (θ) exist at reduced temperatures and show greater surface, they are metastable and irreversibly transform into the alpha stage upon heating over 1100 ° C, making α-Al ₂ O ₃ the unique stage for high-performance structural and practical elements.
1.2 Compositional Grading and Microstructural Design
The properties of alumina ceramics are not repaired however can be customized with regulated variations in purity, grain dimension, and the enhancement of sintering help.
High-purity alumina (≥ 99.5% Al ₂ O THREE) is employed in applications requiring maximum mechanical toughness, electric insulation, and resistance to ion diffusion, such as in semiconductor handling and high-voltage insulators.
Lower-purity qualities (ranging from 85% to 99% Al Two O ₃) usually integrate secondary stages like mullite (3Al ₂ O FIVE · 2SiO ₂) or lustrous silicates, which boost sinterability and thermal shock resistance at the cost of hardness and dielectric efficiency.
A critical consider efficiency optimization is grain dimension control; fine-grained microstructures, achieved with the enhancement of magnesium oxide (MgO) as a grain growth prevention, significantly improve crack toughness and flexural toughness by restricting crack proliferation.
Porosity, also at low degrees, has a harmful effect on mechanical stability, and totally dense alumina ceramics are usually created via pressure-assisted sintering strategies such as warm pushing or hot isostatic pushing (HIP).
The interplay between composition, microstructure, and processing defines the functional envelope within which alumina porcelains run, allowing their use throughout a huge spectrum of industrial and technical domain names.
( Alumina Ceramics)
2. Mechanical and Thermal Performance in Demanding Environments
2.1 Stamina, Hardness, and Wear Resistance
Alumina porcelains display an unique mix of high solidity and moderate fracture toughness, making them ideal for applications entailing unpleasant wear, disintegration, and influence.
With a Vickers hardness commonly ranging from 15 to 20 GPa, alumina rankings among the hardest design products, surpassed just by diamond, cubic boron nitride, and particular carbides.
This extreme solidity converts into phenomenal resistance to scraping, grinding, and bit impingement, which is manipulated in parts such as sandblasting nozzles, cutting tools, pump seals, and wear-resistant linings.
Flexural toughness worths for dense alumina array from 300 to 500 MPa, depending upon purity and microstructure, while compressive strength can surpass 2 Grade point average, enabling alumina elements to stand up to high mechanical tons without deformation.
In spite of its brittleness– a typical attribute amongst ceramics– alumina’s efficiency can be maximized with geometric style, stress-relief functions, and composite reinforcement strategies, such as the consolidation of zirconia bits to generate transformation toughening.
2.2 Thermal Habits and Dimensional Stability
The thermal homes of alumina ceramics are main to their use in high-temperature and thermally cycled environments.
With a thermal conductivity of 20– 30 W/m · K– greater than the majority of polymers and similar to some steels– alumina effectively dissipates warmth, making it appropriate for heat sinks, shielding substrates, and heating system components.
Its reduced coefficient of thermal development (~ 8 × 10 ⁻⁶/ K) makes certain minimal dimensional change during heating and cooling, reducing the risk of thermal shock splitting.
This stability is especially important in applications such as thermocouple security tubes, ignition system insulators, and semiconductor wafer dealing with systems, where specific dimensional control is essential.
Alumina keeps its mechanical integrity up to temperatures of 1600– 1700 ° C in air, beyond which creep and grain border gliding might initiate, depending on pureness and microstructure.
In vacuum or inert ambiences, its performance extends also further, making it a recommended product for space-based instrumentation and high-energy physics experiments.
3. Electric and Dielectric Qualities for Advanced Technologies
3.1 Insulation and High-Voltage Applications
One of one of the most substantial useful qualities of alumina porcelains is their outstanding electrical insulation ability.
With a quantity resistivity going beyond 10 ¹⁴ Ω · cm at space temperature and a dielectric toughness of 10– 15 kV/mm, alumina serves as a trustworthy insulator in high-voltage systems, consisting of power transmission devices, switchgear, and digital product packaging.
Its dielectric continuous (εᵣ ≈ 9– 10 at 1 MHz) is fairly steady throughout a large frequency array, making it suitable for use in capacitors, RF elements, and microwave substratums.
Low dielectric loss (tan δ < 0.0005) ensures very little power dissipation in alternating current (AC) applications, enhancing system performance and reducing warmth generation.
In published circuit boards (PCBs) and crossbreed microelectronics, alumina substrates give mechanical assistance and electrical isolation for conductive traces, allowing high-density circuit integration in rough atmospheres.
3.2 Efficiency in Extreme and Sensitive Settings
Alumina porcelains are distinctively matched for usage in vacuum cleaner, cryogenic, and radiation-intensive atmospheres due to their low outgassing rates and resistance to ionizing radiation.
In particle accelerators and combination reactors, alumina insulators are utilized to isolate high-voltage electrodes and analysis sensing units without introducing pollutants or deteriorating under extended radiation exposure.
Their non-magnetic nature likewise makes them suitable for applications including strong magnetic fields, such as magnetic vibration imaging (MRI) systems and superconducting magnets.
In addition, alumina’s biocompatibility and chemical inertness have resulted in its adoption in clinical devices, including dental implants and orthopedic components, where long-term stability and non-reactivity are extremely important.
4. Industrial, Technological, and Arising Applications
4.1 Function in Industrial Equipment and Chemical Handling
Alumina ceramics are extensively made use of in commercial tools where resistance to use, deterioration, and heats is important.
Elements such as pump seals, valve seats, nozzles, and grinding media are generally fabricated from alumina because of its ability to stand up to abrasive slurries, hostile chemicals, and elevated temperature levels.
In chemical handling plants, alumina linings secure activators and pipelines from acid and alkali assault, prolonging equipment life and lowering upkeep expenses.
Its inertness likewise makes it ideal for usage in semiconductor construction, where contamination control is essential; alumina chambers and wafer watercrafts are exposed to plasma etching and high-purity gas settings without seeping pollutants.
4.2 Integration right into Advanced Manufacturing and Future Technologies
Beyond traditional applications, alumina porcelains are playing a significantly important role in arising technologies.
In additive production, alumina powders are made use of in binder jetting and stereolithography (SHANTY TOWN) refines to make facility, high-temperature-resistant components for aerospace and power systems.
Nanostructured alumina movies are being discovered for catalytic assistances, sensors, and anti-reflective finishings as a result of their high surface area and tunable surface chemistry.
In addition, alumina-based compounds, such as Al ₂ O THREE-ZrO Two or Al Two O SIX-SiC, are being created to overcome the intrinsic brittleness of monolithic alumina, offering enhanced durability and thermal shock resistance for next-generation architectural products.
As sectors remain to push the limits of efficiency and dependability, alumina ceramics continue to be at the center of product development, connecting the gap between architectural toughness and practical convenience.
In recap, alumina porcelains are not just a course of refractory products but a cornerstone of modern engineering, making it possible for technological progression across energy, electronic devices, medical care, and industrial automation.
Their one-of-a-kind mix of residential properties– rooted in atomic structure and improved through innovative processing– guarantees their ongoing significance in both developed and emerging applications.
As material scientific research evolves, alumina will undoubtedly stay a key enabler of high-performance systems operating at the edge of physical and ecological extremes.
