1. Material Scientific Research and Structural Quality
1.1 Crystal Structure and Chemical Stability

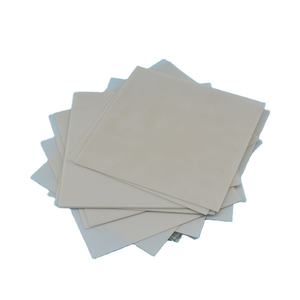

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a broad bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of rotating layers of light weight aluminum and nitrogen atoms bound with strong covalent communications.
This robust atomic arrangement enhances AlN with exceptional thermal security, keeping structural integrity as much as 2200 ° C in inert ambiences and standing up to decomposition under extreme thermal cycling.
Unlike alumina (Al two O TWO), AlN is chemically inert to molten steels and several reactive gases, making it suitable for extreme settings such as semiconductor handling chambers and high-temperature heating systems.
Its high resistance to oxidation– creating only a thin safety Al two O five layer at surface area upon direct exposure to air– ensures lasting reliability without significant destruction of bulk properties.
In addition, AlN exhibits exceptional electric insulation with a resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric stamina over 30 kV/mm, important for high-voltage applications.
1.2 Thermal Conductivity and Digital Characteristics
One of the most specifying feature of aluminum nitride is its superior thermal conductivity, generally ranging from 140 to 180 W/(m · K )for commercial-grade substrates– over five times greater than that of alumina (≈ 30 W/(m · K)).
This efficiency originates from the low atomic mass of nitrogen and aluminum, integrated with strong bonding and very little point defects, which allow effective phonon transport via the latticework.
Nonetheless, oxygen impurities are specifically harmful; also trace quantities (over 100 ppm) alternative to nitrogen websites, developing light weight aluminum openings and scattering phonons, thereby dramatically lowering thermal conductivity.
High-purity AlN powders synthesized by means of carbothermal decrease or straight nitridation are important to attain optimal warmth dissipation.
Regardless of being an electric insulator, AlN’s piezoelectric and pyroelectric residential or commercial properties make it valuable in sensing units and acoustic wave devices, while its large bandgap (~ 6.2 eV) supports procedure in high-power and high-frequency digital systems.
2. Manufacture Procedures and Manufacturing Difficulties

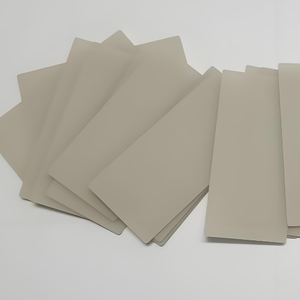

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Producing high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, generally achieved through responses such as Al ₂ O SIX + 3C + N TWO → 2AlN + 3CO (carbothermal decrease) or direct nitridation of light weight aluminum metal: 2Al + N TWO → 2AlN.
The resulting powder needs to be carefully milled and doped with sintering help like Y TWO O SIX, CaO, or rare earth oxides to promote densification at temperature levels in between 1700 ° C and 1900 ° C under nitrogen ambience.
These ingredients form transient fluid phases that enhance grain limit diffusion, enabling full densification (> 99% theoretical density) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich settings can additionally reduce oxygen content by getting rid of intergranular oxides, therefore bring back peak thermal conductivity.
Accomplishing uniform microstructure with controlled grain dimension is vital to balance mechanical strength, thermal efficiency, and manufacturability.
2.2 Substratum Shaping and Metallization
Once sintered, AlN ceramics are precision-ground and washed to satisfy limited dimensional tolerances needed for electronic packaging, commonly down to micrometer-level flatness.
Through-hole boring, laser cutting, and surface area pattern allow combination right into multilayer packages and hybrid circuits.
A critical action in substratum fabrication is metallization– the application of conductive layers (usually tungsten, molybdenum, or copper) through processes such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper foils are bonded to AlN surfaces at raised temperatures in a regulated atmosphere, developing a solid interface suitable for high-current applications.
Alternative methods like active metal brazing (AMB) utilize titanium-containing solders to improve attachment and thermal tiredness resistance, specifically under repeated power cycling.
Correct interfacial engineering guarantees reduced thermal resistance and high mechanical reliability in running devices.
3. Performance Advantages in Electronic Systems
3.1 Thermal Management in Power Electronic Devices
AlN substrates excel in handling warmth generated by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers used in electric cars, renewable resource inverters, and telecommunications framework.
Effective warm extraction protects against local hotspots, minimizes thermal anxiety, and prolongs tool lifetime by reducing electromigration and delamination threats.
Compared to typical Al ₂ O two substrates, AlN makes it possible for smaller sized plan sizes and greater power densities due to its remarkable thermal conductivity, permitting developers to push efficiency boundaries without endangering integrity.
In LED illumination and laser diodes, where junction temperature level straight affects performance and shade stability, AlN substrates substantially improve luminescent outcome and operational lifespan.
Its coefficient of thermal expansion (CTE ≈ 4.5 ppm/K) likewise very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical stress and anxiety throughout thermal biking.
3.2 Electrical and Mechanical Reliability
Past thermal efficiency, AlN uses reduced dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) across a wide regularity variety, making it perfect for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature avoids moisture ingress, eliminating deterioration threats in moist settings– a key advantage over natural substratums.
Mechanically, AlN possesses high flexural strength (300– 400 MPa) and hardness (HV ≈ 1200), making certain longevity throughout handling, setting up, and area operation.
These qualities jointly contribute to boosted system reliability, decreased failure rates, and reduced total cost of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Equipments
AlN ceramic substratums are currently typical in innovative power components for commercial electric motor drives, wind and solar inverters, and onboard battery chargers in electric and hybrid automobiles.
In aerospace and protection, they support radar systems, electronic warfare systems, and satellite interactions, where efficiency under extreme conditions is non-negotiable.
Medical imaging devices, including X-ray generators and MRI systems, likewise benefit from AlN’s radiation resistance and signal integrity.
As electrification trends accelerate throughout transportation and power industries, demand for AlN substratums remains to grow, driven by the need for compact, effective, and dependable power electronics.
4.2 Emerging Assimilation and Sustainable Growth
Future developments focus on incorporating AlN right into three-dimensional packaging designs, ingrained passive parts, and heterogeneous integration platforms integrating Si, SiC, and GaN gadgets.
Study right into nanostructured AlN movies and single-crystal substrates intends to further increase thermal conductivity towards academic limits (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.
Efforts to reduce production costs through scalable powder synthesis, additive production of complicated ceramic frameworks, and recycling of scrap AlN are obtaining momentum to boost sustainability.
Additionally, modeling devices utilizing finite element analysis (FEA) and artificial intelligence are being used to enhance substrate design for details thermal and electrical loads.
To conclude, aluminum nitride ceramic substratums represent a cornerstone modern technology in modern electronic devices, uniquely bridging the space in between electric insulation and remarkable thermal conduction.
Their role in enabling high-efficiency, high-reliability power systems underscores their critical importance in the continuous development of electronic and power modern technologies.
