Intro: Trick devices in power electronics
Silicon-controlled rectifiers (SCRs), likewise called thyristors, are semiconductor power tools with a four-layer three-way junction framework (PNPN). Because its introduction in the 1950s, SCRs have been widely used in industrial automation, power systems, home device control and various other fields because of their high stand up to voltage, big present carrying ability, fast response and simple control. With the development of modern technology, SCRs have actually advanced into numerous types, including unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The distinctions between these types are not only mirrored in the framework and functioning principle, yet likewise determine their applicability in different application circumstances. This write-up will certainly begin with a technical perspective, incorporated with details parameters, to deeply analyze the major differences and common uses of these 4 SCRs.
Unidirectional SCR: Basic and stable application core
Unidirectional SCR is the most standard and common type of thyristor. Its structure is a four-layer three-junction PNPN arrangement, including three electrodes: anode (A), cathode (K) and entrance (G). It just enables existing to flow in one direction (from anode to cathode) and turns on after eviction is set off. When turned on, also if eviction signal is removed, as long as the anode current is above the holding existing (generally less than 100mA), the SCR continues to be on.

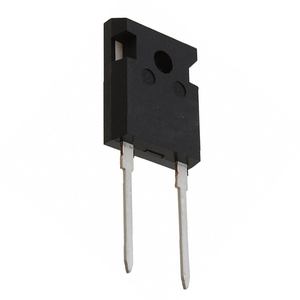

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and current tolerance, with an ahead repetitive top voltage (V DRM) of as much as 6500V and a rated on-state ordinary current (ITAV) of as much as 5000A. For that reason, it is commonly utilized in DC motor control, commercial heater, uninterruptible power supply (UPS) rectification components, power conditioning tools and other occasions that require constant conduction and high power handling. Its benefits are easy framework, affordable and high reliability, and it is a core component of numerous traditional power control systems.
Bidirectional SCR (TRIAC): Ideal for air conditioner control
Unlike unidirectional SCR, bidirectional SCR, also called TRIAC, can accomplish bidirectional transmission in both positive and negative half cycles. This structure contains 2 anti-parallel SCRs, which enable TRIAC to be triggered and activated at any time in the a/c cycle without changing the circuit connection approach. The in proportion transmission voltage range of TRIAC is generally ± 400 ~ 800V, the optimum load current is about 100A, and the trigger current is less than 50mA.
Due to the bidirectional conduction features of TRIAC, it is specifically suitable for AC dimming and speed control in home appliances and consumer electronics. As an example, tools such as lamp dimmers, follower controllers, and a/c unit fan rate regulators all count on TRIAC to attain smooth power guideline. Furthermore, TRIAC likewise has a lower driving power need and appropriates for incorporated style, so it has actually been extensively made use of in smart home systems and small home appliances. Although the power density and changing rate of TRIAC are not as good as those of brand-new power tools, its inexpensive and hassle-free usage make it a vital gamer in the field of small and moderate power air conditioner control.
Gate Turn-Off Thyristor (GTO): A high-performance agent of energetic control
Entrance Turn-Off Thyristor (GTO) is a high-performance power device developed on the basis of traditional SCR. Unlike common SCR, which can just be switched off passively, GTO can be shut off proactively by applying an unfavorable pulse existing to the gate, therefore attaining even more flexible control. This function makes GTO execute well in systems that need frequent start-stop or fast response.
(Thyristor Rectifier)
The technical parameters of GTO show that it has exceptionally high power handling ability: the turn-off gain has to do with 4 ~ 5, the optimum operating voltage can get to 6000V, and the optimum operating current depends on 6000A. The turn-on time is about 1μs, and the turn-off time is 2 ~ 5μs. These efficiency indicators make GTO extensively used in high-power scenarios such as electrical engine traction systems, large inverters, industrial motor regularity conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is reasonably intricate and has high switching losses, its performance under high power and high dynamic feedback demands is still irreplaceable.
Light-controlled thyristor (LTT): A reliable choice in the high-voltage seclusion atmosphere
Light-controlled thyristor (LTT) utilizes optical signals as opposed to electrical signals to trigger conduction, which is its most significant feature that differentiates it from other sorts of SCRs. The optical trigger wavelength of LTT is generally in between 850nm and 950nm, the feedback time is gauged in nanoseconds, and the insulation degree can be as high as 100kV or above. This optoelectronic isolation device considerably boosts the system’s anti-electromagnetic interference capability and security.
LTT is mostly utilized in ultra-high voltage direct present transmission (UHVDC), power system relay security gadgets, electromagnetic compatibility protection in clinical tools, and armed forces radar communication systems etc, which have exceptionally high demands for security and stability. For instance, numerous converter stations in China’s “West-to-East Power Transmission” project have actually adopted LTT-based converter shutoff modules to ensure steady operation under exceptionally high voltage problems. Some progressed LTTs can additionally be combined with gateway control to achieve bidirectional transmission or turn-off features, even more increasing their application array and making them a perfect selection for addressing high-voltage and high-current control troubles.
