Worldwide Industrial Pipeline Valves: A Side-by-Side Comparison of Significant Classifications
With the constant advancement of commercial infrastructure worldwide– from urban supply of water networks and long-distance oil and gas pipes to petrochemical plants and fire defense systems– valves, pipes, and installations remain the unrecognized heroes that keep whatever streaming. For procurement experts and engineers, the challenge is actual: when confronted with Ball Valves, Butterfly Valves, Gate Valves, Globe Valves, Examine Valves, Control Valves, and Fire Protection Valves, just how do you pick the right one for the job? The answer relies on a handful of elements– media qualities, just how commonly you operate the valve, pressure and temperature rankings, and the area you have for installation.
Datang, as a manufacturer operating with its own independent site, has long focused on providing a full package: valves of all significant kinds, Stainless Steel Pipeline and Carbon Steel Pipeline, and a full schedule of Pipe Fittings. This article walks you through an in-depth comparison of the 7 most popular shutoff classifications, discuss the bottom lines of pipe product option, and briefly covers suitable link methods– all to provide you a clear course through the puzzle of industrial piping system options.
1. Deep Study the 7 Major Shutoff Categories
1.1 Round Valves– The Versatile Workhorse for Shut-Off Applications
A Round Valve makes use of a round closure system with a birthed through its center, rotating 90 degrees to open up or close the flow course. Its international appeal is no mishap– it combines low flow resistance, fast quarter-turn procedure, and dependable securing performance. The valve seats are usually made from PTFE or reinforced polymers, which function beautifully in clean media, gases, water, and gently destructive environments. For high-pressure, large-diameter applications, the trunnion-mounted sphere style is the best option; for smaller sized, affordable lines, the floating round setup gets the job done just fine.
That stated, Round Valves have their limitations. Given that the securing depends on line get in touch with in between the round surface and the seat, any kind of abrasive particles in the media can easily damage the surface area and trigger internal leakage. That makes them a poor suitable for slurry, unattended circulating water, or any stream bring solids. At high temperatures, polymer seats may slip or flaw, which is why metal-seated or fire-safe layouts come to be required.

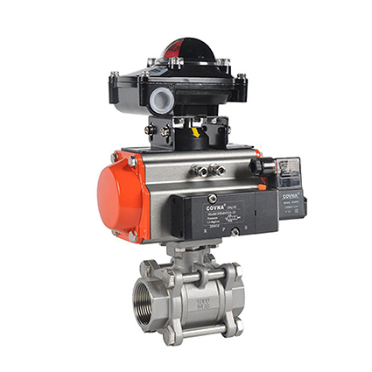

(Ball Valves)
Typical applications: gas circulation stations, refinery product lines, city gas networks, and purified water systems.
What Datang provides: Stainless Steel (304/316L) and Carbon Steel (WCB) alternatives, drifting and trunnion-mounted types, fire-safe and anti-static structures, and both split-body and welded-body layouts, with dimension varieties from DN15 approximately DN600.
1.2 Butterfly Shutoffs– The Smart Selection for Large-Diameter Water Equipment
A Butterfly Valve uses a disc that turns within the shutoff body to control flow. Its largest marketing points? Portable structure, lightweight, and marginal installation area– specifically in huge diameters (DN200 and over), where it clearly beats Sphere Valves and Entrance Valves in cost-effectiveness. Securing can be soft (lined with rubber or PTFE) or tough (metal-to-metal). Soft-seated types are fine for clean water at space temperature level, while hard-seated variations take care of steam or mildly unpleasant media at higher temperatures.
The drawbacks? Also fully open, the disc remains in the circulation course, producing recognizable resistance. Plus, sealing relies upon the elasticity of the seat or eccentric compression, so under high stress, it does not match the tightness of Sphere Valves or Gateway Valves. Triple-offset styles enhance sealing efficiency significantly, however they likewise press the cost up.
Common applications: water therapy plant inlet/outlet keys, cooling down water recirculation systems, a/c cooled water headers, and large-diameter air flow ducts.
What Datang provides: wafer, lug, and flange link types; soft-seated variations with EPDM, NBR, or PTFE liners; hard-seated multi-layer metal layouts; stress ratings from PN10 to PN40.

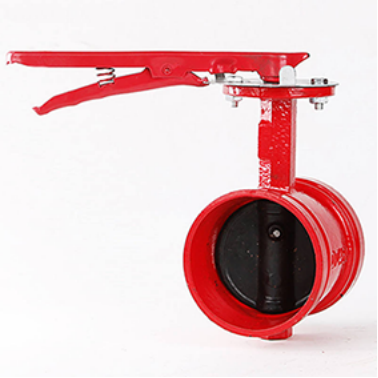

(Butterfly Valves)
1.3 Entrance Valves– The Traditional Favorite for Low-Resistance Shut-Off
A Gateway Valve operates by lifting an entrance or wedge backwards and forwards within the body to block or open up the flow. Its standout feature is the straight-through flow course, which offers it the most affordable flow resistance amongst all valve types– making it the default choice for pipes where stress drop is a significant concern. That stated, Gate Valves aren’t developed for constant procedure. The traveling is long, the activity is slow-moving, and each cycle puts on the sealing surface areas as the gate slides versus the seats.
Entrance Valves come in rising-stem and non-rising-stem configurations. Rising-stem types allow you see the shutoff setting at a look, making them suitable for above-ground piping; non-rising-stem types conserve headroom and work well in buried or constrained spaces. Wedge-type entrances produce tighter seals as they close, handling high-temperature steam lines effortlessly, while parallel-slide entrances are better suited for low-pressure, large-diameter water supply.
Typical applications: power plant main heavy steam lines, crude oil transmission block shutoffs, wastewater plant inlet/outlet headers, and fire pump discharge lines.
What Datang provides: cast steel and Stainless-steel rising-stem and non-rising-stem Gate Shutoffs, wedge and parallel-slide layouts, with bevel gear or electric actuator alternatives for remote procedure.
(Gate Valves)
1.4 Globe Shutoffs– The Trustworthy Partner for Precise Throttling
A World Valve utilizes a disc that moves linearly along the seat centerline, changing the flow area to regulate the media. The interior flow path compels the media to change direction, which creates high resistance and considerable pressure decline– that’s the primary disadvantage. Yet that same tortuous course gives the Globe Shutoff something its rivals can not match: excellent strangling precision. And when totally closed, the disc and seat develop a self-tightening seal with remarkable integrity.
Globe Valves be available in straight, angle, and Y-pattern designs. The Y-pattern variation angles the stem at 45 degrees to the flow, decreasing resistance and making it suitable for frequent guideline. The disc account can be conical, needle-shaped, or parabolic, depending on the circulation characteristics you require.
Typical applications: central heating boiler feedwater guideline, steam desuperheating terminals, chemical activator feed control, and compressed air branch line throttling.
What Datang provides: T-pattern, angle, and Y-pattern Globe Valves, with disc encounters hard-faced with cobalt-based alloys for wear resistance; hands-on handwheel, bevel equipment, or pneumatically-driven diaphragm actuator choices.
(Globe Valves)

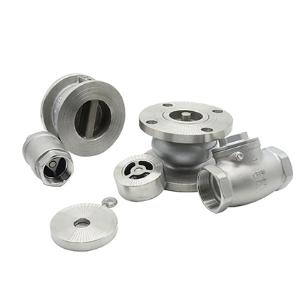

1.5 Check Valves– The Easy Safety And Security Barrier
An Examine Valve is totally automated– it opens up with forward flow and closes by gravity or springtime pressure when flow reverses, avoiding heartburn. At pump discharges, compressor electrical outlets, and parallel equipment trains, Check Shutoffs are the essential safety and security tool that protects expensive machinery from reverse turning or water hammer damages.
Swing-type Check Valves have a disc that pivots on a hinge pin, using low circulation resistance and matching large-diameter straight or upright lines. Lift-type Examine Valves lead the disc up and down along a guide slot– they seal tighter yet have greater resistance, making them a better fit for small-diameter, high-pressure systems. Dual-plate Inspect Shutoffs feature two semicircular discs that swing around a common pivot, closing rapidly with a small footprint; they’re the fastest-growing enter oil, gas, and chemical tasks. Something to watch: quick closure can activate water hammer, so in high-lift pump terminals, models with dashpot dampers or slow-closing systems deserve taking into consideration.
Normal applications: pump discharge anti-backflow, steam trap systems, fire pump outlet lines, and chemical plant shot points.
What Datang supplies: swing-type, lift-type, and dual-plate Inspect Shutoffs, with weight or hydraulic dashpot choices for sluggish closure; products consisting of Carbon Steel, Stainless-steel, and duplex steel.
(Check Valves)
1.6 Control Shutoffs– The Last Act in Refine Automation
A Control Shutoff is the end-element in an automated control loophole. It takes a signal from the controller, moves the actuator, and changes the shutoff plug placement to manage circulation, stress, temperature, or liquid level. The real refinement depends on the flow characteristic contour (linear, equal-percentage, or quick-opening) and the shutoff’s capacity to speak to the control system.
Typical type of body include straight single-seat, straight double-seat, cage-guided, and angle valves. Single-seat shutoffs use reduced leakage yet can not manage high differential stress; double-seat shutoffs tolerate greater stress drops however leakage extra; cage-guided valves run quieter and take care of resonance far better. With the rise of commercial IoT, wise positioners currently sustain HART, Profibus, and Modbus procedures, offering plant drivers real-time feedback and analysis information.
Typical applications: chemical reactor temperature level control, nuclear power plant feedwater flow law, natural gas pressure-reducing terminals, and wastewater aeration control.
What Datang offers: single-seat, double-seat, and cage-guided Control Shutoff bodies, with electric or pneumatically-driven diaphragm actuators; trim materials personalized for anti-cavitation and anti-erosion needs.
(Control Valves)
1.7 Fire Protection Valves– A Regulatory-Driven Need
Fire Protection Shutoffs are specifically developed for sprinkler system systems, fire hydrant networks, and fire pump assemblies. What establishes them apart from ordinary valves is the requirement for quick activation under emergency situation conditions, rock-solid dependability, and clearly specified pressure settings. Common types consist of fire-rated Gateway Shutoffs, fire-rated Butterfly Valves, deluge shutoffs, wet alarm valves, and pressure-reducing shutoffs.
The choice reasoning below is various from commercial shutoffs– it’s driven much less by the media itself and even more by the system kind (wet, dry, pre-action, or deluge) and the threat classification you’re shielding. Because these systems rest idle for long periods, inner leak and corrosion-induced sticking are the major failure threats. That’s why rust-proofing, seal material aging cycles, and ease of regular screening become top priorities.
Regular applications: skyscraper sprinkler risers, petrochemical plant fire loopholes, underground energy passage fire zones, and storage tank ranch foam systems.
What Datang uses: fire-rated Gateway Shutoffs and Butterfly Valves with interior and exterior epoxy finish; alarm system valves full with hamper chambers, water electric motor gongs, and pressure switches; totally suitable with Fire Fighting Pipelines and Grooved Fittings for a full system option.
(Fire Protection Valves)
Quick Contrast Table– 7 Significant Shutoff Groups at a Glimpse

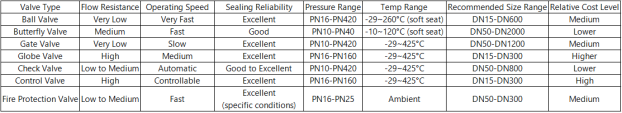

(Major Valve Categories Comparison)
Keep in mind: The numbers above are general sector referrals. Actual efficiency depends upon product selection, sealing layout, and producing accuracy.
2. Just How Pipe Material Choice Functions with Your Valve System
As soon as you’ve settled on the valve kinds, matching the piping product is the next important step. Pipes aren’t simply conduits– their inside surface finish straight affects exactly how well your valves secure, and their wall density establishes the system’s stress border.

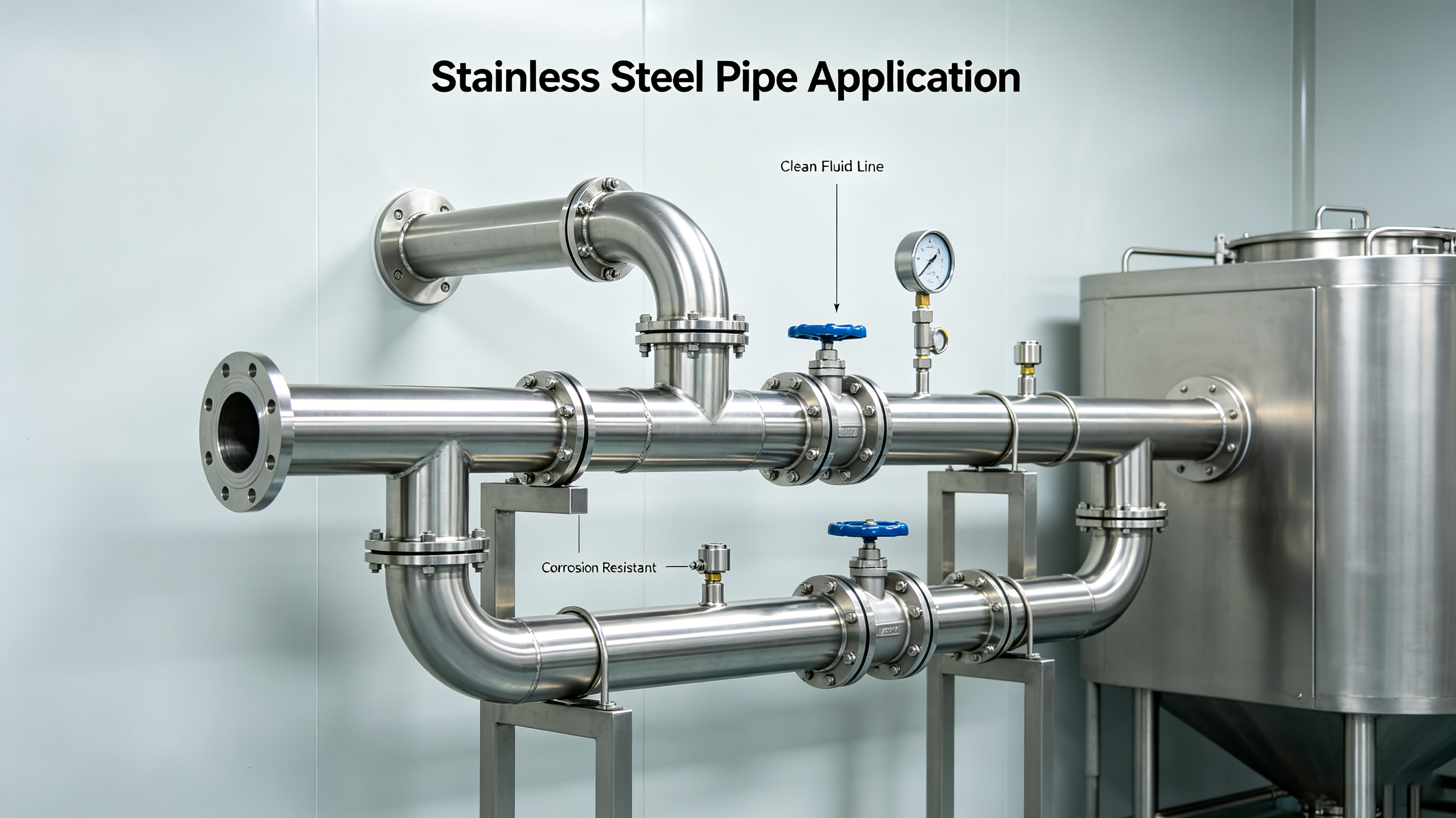

2.1 Stainless Steel Pipeline– The Go-To for Corrosive Provider
Stainless Steel Piping offer excellent resistance to uniform deterioration and matching, making them a staple in chemical handling, food and pharmaceutical sanitary lines, and offshore applications. Austenitic qualities like 304/304L and 316/316L are one of the most usual; 316L, with its molybdenum enhancement, manages chloride-bearing atmospheres far better than 304. When you’re running Stainless-steel Piping, the valve bodies and internal trim should likewise be stainless to avoid galvanic corrosion between different steels.
Bonded and flanged connections are the two major choices for Stainless-steel Water Lines. Welding gives you a leak-tight, smooth bore, though it calls for argon shielding on-site; flanged joints are easier to uncouple for maintenance, yet you need to make sure the gasket material works with the media.
Normal industries: fine chemicals, pharmaceuticals, bio-fermentation, salt water desalination, and food and beverage.
Datang’s approach: Stainless-steel Valves + Stainless-steel Pipes + Stainless-steel Pipe Fittings– a totally incorporated corrosion-resistant system that leaves no weak links.
2.2 Carbon Steel Water Lines– The Heavy Lifter for Energy and Heavy Market
Carbon Steel Pipeline incorporate high toughness with solid cost-effectiveness, making them the leading choice in oil, gas, power generation, and district heating. Typical requirements consist of ASTM A53, A106, and API 5L, covering various pressure courses and low-temperature durability demands. The primary downside? Rust resistance is restricted. In damp environments or when carrying destructive fluids, you’ll need outside finishes and internal liners for security.
When it comes to connecting Carbon Steel Pipeline to valves, welding or butt-welding is the standard for high-pressure systems– joint toughness needs to match the parent product. In tool- to low-pressure water and fire systems, flanged and grooved connections are a lot more usual. One point to watch: see to it the pressure class of your pipes and shutoffs match. If your pipeline is ranked Course 150 yet your shutoff is Class 300, it’s excessive without adding any worth; if the shutoff is lower-rated than the pipeline, it comes to be the system’s weakest link.
Normal industries: long-distance oil/gas pipes, key home heating networks, commercial heavy steam lines, and compressed air headers.
Datang’s strategy: Carbon Steel Pipes and fittings rated to the same pressure classes (Course 150/300/600) as our shutoffs, with seamless and welded alternatives available, covering all wall surface thicknesses per ASME B36.10.
( Pipe Application)
2.3 Fire Fighting Pipelines– A Specialized Classification of Its Own
Fire Battling Pipes are mostly carbon steel or galvanized carbon steel, but they follow their very own set of criteria for deterioration protection and stress screening. NFPA demands generally require inner galvanizing or epoxy coating to withstand interior rust from long-lasting water call. Exterior covering depends on whether the pipe is buried, exposed inside your home, or mounted outdoors.
Another key distinction: hydrostatic examination pressure for Fire Battling Pipes is usually 1.5 times the working pressure, held for a defined time to confirm system integrity. When Datang supplies both Fire Protection Valves and Fire Combating Pipelines, we can do a pre-shipment joint stress test to validate the entire system executes as created before it ever before reaches your website.
Datang’s strategy: fire-rated Gate/Butterfly Valves + internally/externally coated Fire Combating Pipes + Grooved Fittings– a full chain from pump area to lawn sprinkler heads, lowering purchase complexity.

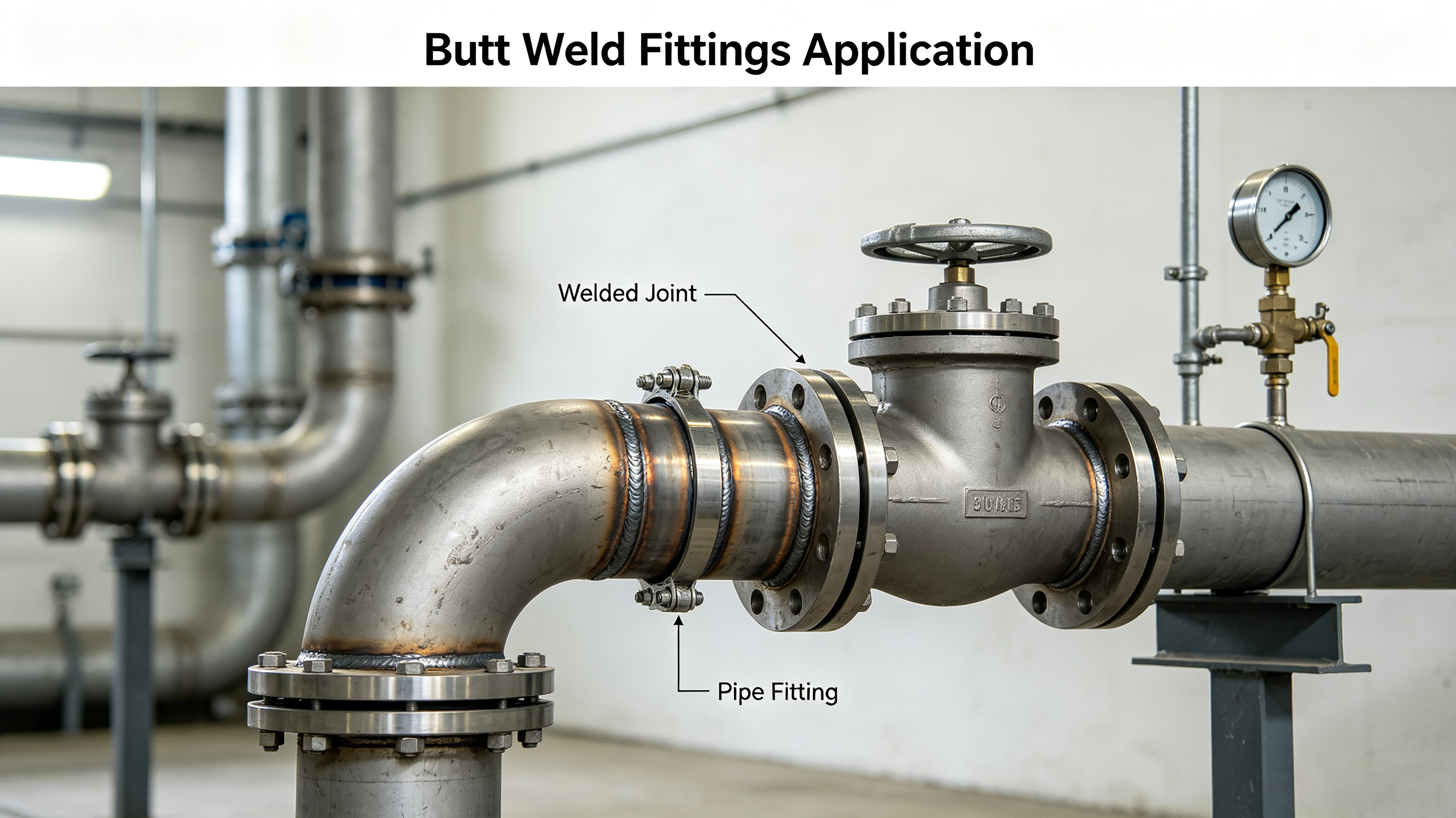

( Butt Weld Fittings Application Application)
3. A Peek at Pipe Fittings Connection Techniques
A piping system isn’t just shutoffs and pipes– you likewise require installations to transform instructions, reduce or expand diameters, develop branches, and link components. The appropriate fitting option can make or break your setup efficiency and long-lasting dependability.
â–ª Stainless Steel Pipe Fittings: consisting of elbow joints, tees, concentric/eccentric reducers, and caps– made from the very same stainless grades as the pipes and joined by welding to keep corrosion resistance undamaged at the joints. Perfect for food, chemical, and sanitary systems.
â–ª Flanges: the most standard bolted link, providing easy disassembly and compatibility with a vast array of valves and equipment. Face types include RF (increased face), FF (flat face), and RTJ (ring-type joint)– gaskets require to match temperature and stress conditions. Datang supplies Flanges that are totally suitable with our valves and pipelines (ANSI/DIN/JIS standards), so you do not encounter bolt-hole imbalance or dissimilar securing faces during setup.
â–ª Grooved Fittings: these use a mechanical combining and a gasket to create a quick, bolt-free connection. After roll-grooving the pipe ends, you snap in the gasket and tighten up the combining. This approach is a favored in fire protection and water supply systems– installment is noticeably faster than welding, and the joint enables some angular deflection, which provides it good seismic resistance. Quality assurance here concentrates on groove depth and width precision, plus the compression proportion layout of the rubber gasket.
â–ª Butt Weld Fittings: constructed for severe solutions– high temperature, high stress, and thermal biking– like nuclear power plant major vapor headers and refinery heater inlets/outlets. Butt Weld Fittings match the wall surface density of the moms and dad pipeline and use full-penetration welds that create joint strength equivalent to the base material. Wall thickness selection and bevel prep work are vital to weld quality. Datang delivers these installations with correctly machined bevels and end caps for security, prepared for area fit-up and welding.

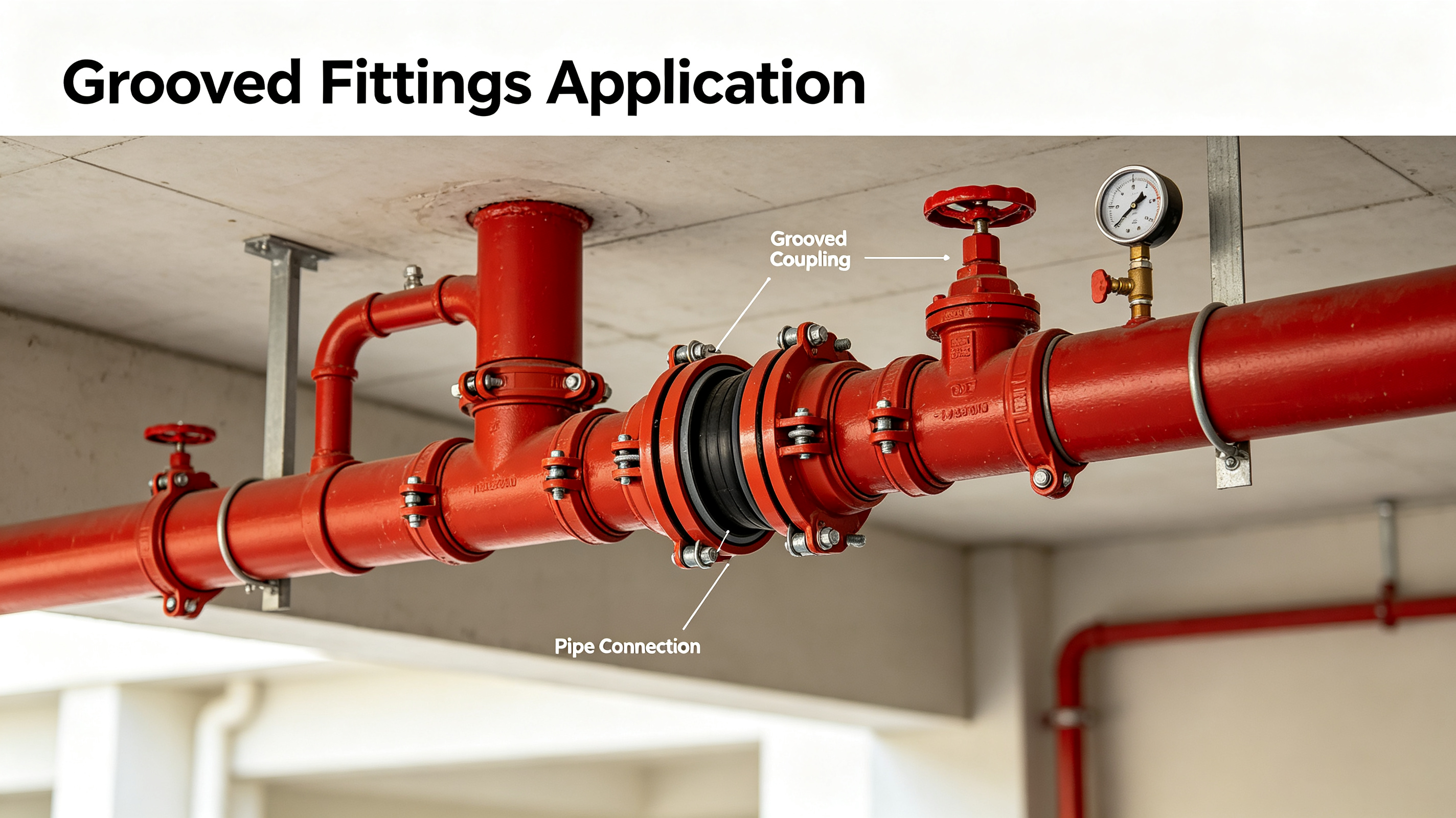

( Grooved Fittings Application Application)
Bringing it all together: a commercial piping system is far more than simply a stack of valve products. Whether you’re considering the fast shut-off of a Ball Valve against the reduced resistance of a Gateway Valve, determining between the throttling precision of a World Valve and the automated intelligence of a Control Shutoff, or meeting the compliance needs of Fire Defense Shutoffs– every classification has its very own sweet place. And the pipelines and installations that connect them with each other are just as crucial. Selecting the right materials and link approaches ensures your shutoffs can actually deliver the performance you’re relying on.
Datang, running via our very own independent website, brings shutoffs, pipes, and installations right into one merged product portfolio, offering procurement groups a less complex, more consistent way to source complete systems. There’s no universal “ideal”– just the appropriate suitable for your media, pressure, temperature level, running frequency, and installation restrictions. That’s the reasoning that results in systems that are both safe and cost-efficient in the future.
