1. Crystal Framework and Layered Anisotropy
1.1 The 2H and 1T Polymorphs: Architectural and Electronic Duality

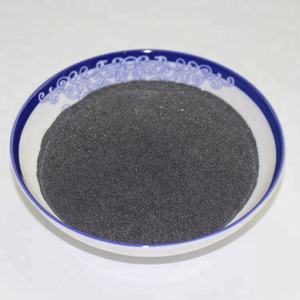

(Molybdenum Disulfide)
Molybdenum disulfide (MoS TWO) is a layered change metal dichalcogenide (TMD) with a chemical formula including one molybdenum atom sandwiched between two sulfur atoms in a trigonal prismatic sychronisation, developing covalently adhered S– Mo– S sheets.
These individual monolayers are piled vertically and held together by weak van der Waals pressures, allowing simple interlayer shear and exfoliation to atomically thin two-dimensional (2D) crystals– a structural attribute main to its varied practical duties.
MoS ₂ exists in numerous polymorphic kinds, one of the most thermodynamically secure being the semiconducting 2H phase (hexagonal symmetry), where each layer displays a straight bandgap of ~ 1.8 eV in monolayer form that transitions to an indirect bandgap (~ 1.3 eV) wholesale, a phenomenon crucial for optoelectronic applications.
On the other hand, the metastable 1T phase (tetragonal balance) embraces an octahedral control and acts as a metallic conductor due to electron donation from the sulfur atoms, making it possible for applications in electrocatalysis and conductive compounds.
Phase transitions between 2H and 1T can be induced chemically, electrochemically, or via pressure design, offering a tunable platform for designing multifunctional gadgets.
The ability to support and pattern these stages spatially within a single flake opens up paths for in-plane heterostructures with distinctive electronic domain names.
1.2 Defects, Doping, and Edge States
The efficiency of MoS ₂ in catalytic and electronic applications is very sensitive to atomic-scale problems and dopants.
Inherent factor defects such as sulfur openings act as electron donors, increasing n-type conductivity and functioning as active sites for hydrogen evolution responses (HER) in water splitting.
Grain limits and line issues can either restrain cost transport or develop local conductive pathways, depending upon their atomic setup.
Managed doping with change steels (e.g., Re, Nb) or chalcogens (e.g., Se) enables fine-tuning of the band structure, carrier focus, and spin-orbit coupling effects.
Significantly, the edges of MoS ₂ nanosheets, particularly the metallic Mo-terminated (10– 10) sides, display considerably higher catalytic task than the inert basic aircraft, inspiring the design of nanostructured stimulants with made best use of edge exposure.
( Molybdenum Disulfide)
These defect-engineered systems exhibit just how atomic-level adjustment can transform a naturally happening mineral right into a high-performance useful product.
2. Synthesis and Nanofabrication Methods
2.1 Bulk and Thin-Film Production Techniques
Natural molybdenite, the mineral type of MoS TWO, has actually been utilized for years as a solid lubricant, but contemporary applications demand high-purity, structurally managed synthetic types.
Chemical vapor deposition (CVD) is the leading method for producing large-area, high-crystallinity monolayer and few-layer MoS ₂ films on substrates such as SiO TWO/ Si, sapphire, or flexible polymers.
In CVD, molybdenum and sulfur precursors (e.g., MoO four and S powder) are vaporized at high temperatures (700– 1000 ° C )in control ambiences, allowing layer-by-layer development with tunable domain name size and positioning.
Mechanical exfoliation (“scotch tape technique”) remains a benchmark for research-grade samples, generating ultra-clean monolayers with very little issues, though it lacks scalability.
Liquid-phase exfoliation, including sonication or shear blending of bulk crystals in solvents or surfactant options, creates colloidal dispersions of few-layer nanosheets ideal for coverings, compounds, and ink formulations.
2.2 Heterostructure Assimilation and Tool Pattern
Truth possibility of MoS two arises when integrated right into vertical or lateral heterostructures with other 2D materials such as graphene, hexagonal boron nitride (h-BN), or WSe ₂.
These van der Waals heterostructures enable the style of atomically accurate devices, consisting of tunneling transistors, photodetectors, and light-emitting diodes (LEDs), where interlayer cost and energy transfer can be crafted.
Lithographic patterning and etching methods enable the fabrication of nanoribbons, quantum dots, and field-effect transistors (FETs) with channel sizes to tens of nanometers.
Dielectric encapsulation with h-BN safeguards MoS ₂ from environmental deterioration and decreases charge scattering, substantially improving service provider flexibility and tool security.
These construction developments are vital for transitioning MoS ₂ from research laboratory interest to practical element in next-generation nanoelectronics.
3. Functional Characteristics and Physical Mechanisms
3.1 Tribological Actions and Strong Lubrication
Among the oldest and most enduring applications of MoS ₂ is as a completely dry solid lubricant in extreme atmospheres where liquid oils fail– such as vacuum cleaner, heats, or cryogenic problems.
The low interlayer shear toughness of the van der Waals void permits simple moving between S– Mo– S layers, leading to a coefficient of rubbing as low as 0.03– 0.06 under ideal problems.
Its efficiency is even more enhanced by strong attachment to steel surfaces and resistance to oxidation as much as ~ 350 ° C in air, beyond which MoO ₃ formation raises wear.
MoS two is widely utilized in aerospace mechanisms, air pump, and gun parts, often used as a layer through burnishing, sputtering, or composite consolidation into polymer matrices.
Recent research studies show that moisture can deteriorate lubricity by increasing interlayer adhesion, triggering research study right into hydrophobic layers or crossbreed lubes for enhanced ecological stability.
3.2 Digital and Optoelectronic Reaction
As a direct-gap semiconductor in monolayer type, MoS two displays strong light-matter interaction, with absorption coefficients going beyond 10 ⁵ centimeters ⁻¹ and high quantum yield in photoluminescence.
This makes it ideal for ultrathin photodetectors with fast feedback times and broadband sensitivity, from visible to near-infrared wavelengths.
Field-effect transistors based on monolayer MoS two demonstrate on/off proportions > 10 ⁸ and carrier movements approximately 500 centimeters ²/ V · s in put on hold samples, though substrate communications normally limit functional values to 1– 20 cm TWO/ V · s.
Spin-valley coupling, a repercussion of strong spin-orbit interaction and broken inversion proportion, enables valleytronics– a novel standard for details encoding utilizing the valley level of flexibility in momentum space.
These quantum sensations position MoS two as a prospect for low-power logic, memory, and quantum computing components.
4. Applications in Energy, Catalysis, and Arising Technologies
4.1 Electrocatalysis for Hydrogen Evolution Reaction (HER)
MoS ₂ has become an appealing non-precious option to platinum in the hydrogen development reaction (HER), a crucial procedure in water electrolysis for green hydrogen manufacturing.
While the basal plane is catalytically inert, side websites and sulfur vacancies exhibit near-optimal hydrogen adsorption cost-free power (ΔG_H * ≈ 0), similar to Pt.
Nanostructuring techniques– such as producing up and down straightened nanosheets, defect-rich films, or doped hybrids with Ni or Co– make the most of energetic website thickness and electric conductivity.
When integrated right into electrodes with conductive supports like carbon nanotubes or graphene, MoS ₂ accomplishes high present thickness and long-term stability under acidic or neutral conditions.
Additional enhancement is accomplished by maintaining the metallic 1T phase, which enhances innate conductivity and subjects added active sites.
4.2 Versatile Electronic Devices, Sensors, and Quantum Gadgets
The mechanical flexibility, openness, and high surface-to-volume proportion of MoS ₂ make it perfect for versatile and wearable electronic devices.
Transistors, logic circuits, and memory gadgets have actually been demonstrated on plastic substrates, enabling flexible display screens, health and wellness monitors, and IoT sensing units.
MoS ₂-based gas sensing units exhibit high sensitivity to NO TWO, NH FIVE, and H TWO O as a result of bill transfer upon molecular adsorption, with feedback times in the sub-second variety.
In quantum modern technologies, MoS two hosts local excitons and trions at cryogenic temperatures, and strain-induced pseudomagnetic areas can catch carriers, allowing single-photon emitters and quantum dots.
These growths highlight MoS two not only as a practical material however as a platform for exploring fundamental physics in lowered measurements.
In recap, molybdenum disulfide exhibits the convergence of classic materials science and quantum engineering.
From its ancient role as a lubricating substance to its modern-day deployment in atomically slim electronic devices and power systems, MoS ₂ remains to redefine the boundaries of what is possible in nanoscale products design.
As synthesis, characterization, and integration methods advance, its effect throughout science and modern technology is positioned to broaden also additionally.
