1. Product Foundations and Collaborating Style
1.1 Innate Qualities of Component Phases

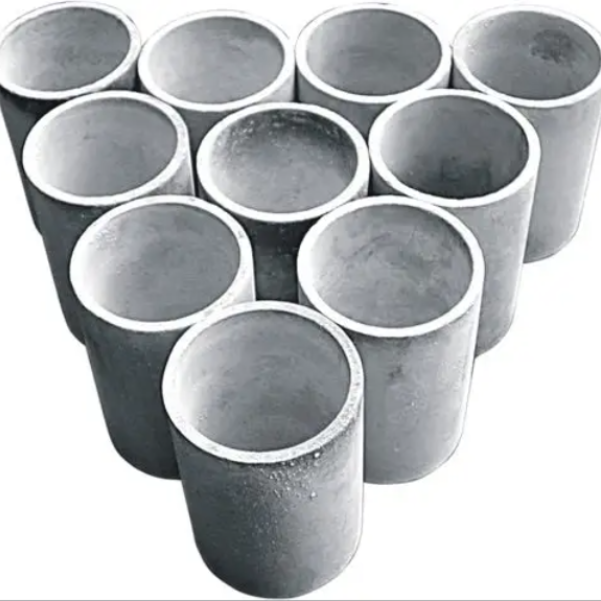

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si four N ₄) and silicon carbide (SiC) are both covalently bonded, non-oxide porcelains renowned for their remarkable efficiency in high-temperature, destructive, and mechanically demanding settings.
Silicon nitride displays impressive fracture strength, thermal shock resistance, and creep stability as a result of its unique microstructure made up of lengthened β-Si four N four grains that enable crack deflection and bridging devices.
It preserves strength as much as 1400 ° C and has a fairly reduced thermal expansion coefficient (~ 3.2 × 10 ⁻⁶/ K), reducing thermal stresses during quick temperature level adjustments.
On the other hand, silicon carbide offers remarkable hardness, thermal conductivity (up to 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it perfect for unpleasant and radiative warmth dissipation applications.
Its broad bandgap (~ 3.3 eV for 4H-SiC) likewise confers exceptional electric insulation and radiation tolerance, useful in nuclear and semiconductor contexts.
When incorporated into a composite, these materials exhibit corresponding habits: Si three N four boosts durability and damage tolerance, while SiC boosts thermal management and use resistance.
The resulting hybrid ceramic attains a balance unattainable by either phase alone, developing a high-performance architectural material tailored for extreme service conditions.
1.2 Composite Architecture and Microstructural Engineering
The design of Si six N ₄– SiC compounds entails accurate control over phase distribution, grain morphology, and interfacial bonding to make best use of synergistic results.
Commonly, SiC is presented as great particle reinforcement (varying from submicron to 1 µm) within a Si two N ₄ matrix, although functionally rated or split designs are likewise checked out for specialized applications.
Throughout sintering– normally using gas-pressure sintering (GENERAL PRACTITIONER) or warm pressing– SiC fragments affect the nucleation and development kinetics of β-Si five N ₄ grains, usually advertising finer and more evenly oriented microstructures.
This refinement improves mechanical homogeneity and minimizes problem size, adding to better strength and reliability.
Interfacial compatibility in between the two phases is crucial; since both are covalent porcelains with similar crystallographic proportion and thermal growth habits, they develop meaningful or semi-coherent limits that stand up to debonding under tons.
Additives such as yttria (Y ₂ O FOUR) and alumina (Al two O FOUR) are made use of as sintering aids to advertise liquid-phase densification of Si three N ₄ without compromising the stability of SiC.
Nevertheless, excessive additional phases can degrade high-temperature efficiency, so structure and handling must be optimized to decrease glassy grain boundary films.
2. Handling Methods and Densification Obstacles

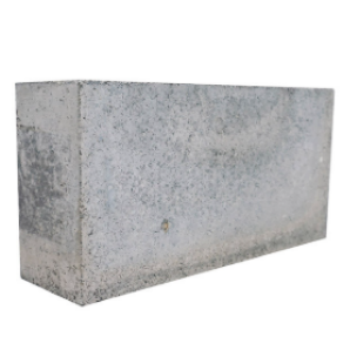

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Preparation and Shaping Approaches
Top Notch Si ₃ N ₄– SiC compounds start with homogeneous mixing of ultrafine, high-purity powders making use of damp sphere milling, attrition milling, or ultrasonic diffusion in natural or liquid media.
Accomplishing uniform diffusion is crucial to prevent heap of SiC, which can work as stress and anxiety concentrators and lower fracture sturdiness.
Binders and dispersants are contributed to support suspensions for shaping techniques such as slip spreading, tape spreading, or shot molding, depending upon the desired element geometry.
Environment-friendly bodies are after that thoroughly dried and debound to eliminate organics before sintering, a process calling for regulated heating rates to stay clear of breaking or deforming.
For near-net-shape manufacturing, additive techniques like binder jetting or stereolithography are arising, enabling complicated geometries previously unattainable with typical ceramic processing.
These methods call for tailored feedstocks with optimized rheology and eco-friendly strength, often including polymer-derived ceramics or photosensitive materials filled with composite powders.
2.2 Sintering Mechanisms and Stage Stability
Densification of Si Six N FOUR– SiC compounds is testing due to the solid covalent bonding and restricted self-diffusion of nitrogen and carbon at sensible temperature levels.
Liquid-phase sintering using rare-earth or alkaline earth oxides (e.g., Y ₂ O TWO, MgO) reduces the eutectic temperature level and enhances mass transportation through a transient silicate melt.
Under gas stress (normally 1– 10 MPa N ₂), this thaw facilitates rearrangement, solution-precipitation, and last densification while subduing decay of Si two N FOUR.
The visibility of SiC affects thickness and wettability of the fluid phase, possibly altering grain development anisotropy and final texture.
Post-sintering warm treatments may be related to take shape residual amorphous phases at grain borders, improving high-temperature mechanical buildings and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are regularly used to confirm phase purity, lack of undesirable secondary phases (e.g., Si two N ₂ O), and uniform microstructure.
3. Mechanical and Thermal Performance Under Lots
3.1 Strength, Toughness, and Tiredness Resistance
Si ₃ N FOUR– SiC compounds show exceptional mechanical efficiency compared to monolithic ceramics, with flexural strengths surpassing 800 MPa and crack strength worths getting to 7– 9 MPa · m 1ST/ ².
The reinforcing effect of SiC particles restrains misplacement activity and split proliferation, while the elongated Si ₃ N four grains continue to provide toughening through pull-out and connecting mechanisms.
This dual-toughening approach causes a material very resistant to influence, thermal biking, and mechanical tiredness– critical for turning elements and architectural components in aerospace and energy systems.
Creep resistance stays outstanding approximately 1300 ° C, credited to the security of the covalent network and decreased grain limit moving when amorphous stages are decreased.
Solidity values usually vary from 16 to 19 GPa, using excellent wear and erosion resistance in rough environments such as sand-laden circulations or sliding get in touches with.
3.2 Thermal Administration and Environmental Durability
The addition of SiC dramatically raises the thermal conductivity of the composite, commonly doubling that of pure Si four N FOUR (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) relying on SiC web content and microstructure.
This improved warmth transfer capability permits much more effective thermal monitoring in components exposed to intense local home heating, such as combustion liners or plasma-facing components.
The composite keeps dimensional security under steep thermal slopes, withstanding spallation and fracturing due to matched thermal development and high thermal shock specification (R-value).
Oxidation resistance is one more vital advantage; SiC forms a safety silica (SiO ₂) layer upon exposure to oxygen at elevated temperature levels, which even more compresses and seals surface area problems.
This passive layer safeguards both SiC and Si ₃ N ₄ (which likewise oxidizes to SiO ₂ and N TWO), guaranteeing lasting toughness in air, heavy steam, or burning environments.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Energy, and Industrial Systems
Si ₃ N ₄– SiC composites are significantly released in next-generation gas generators, where they allow higher operating temperatures, boosted fuel performance, and reduced air conditioning needs.
Parts such as turbine blades, combustor linings, and nozzle guide vanes gain from the material’s ability to withstand thermal cycling and mechanical loading without significant destruction.
In atomic power plants, particularly high-temperature gas-cooled reactors (HTGRs), these compounds work as gas cladding or structural supports because of their neutron irradiation tolerance and fission item retention ability.
In industrial settings, they are utilized in molten metal handling, kiln furniture, and wear-resistant nozzles and bearings, where traditional steels would certainly fall short prematurely.
Their lightweight nature (density ~ 3.2 g/cm ³) additionally makes them attractive for aerospace propulsion and hypersonic automobile parts based on aerothermal heating.
4.2 Advanced Production and Multifunctional Integration
Emerging research study concentrates on developing functionally rated Si two N ₄– SiC frameworks, where composition differs spatially to optimize thermal, mechanical, or electromagnetic homes throughout a single component.
Crossbreed systems integrating CMC (ceramic matrix composite) styles with fiber support (e.g., SiC_f/ SiC– Si Five N FOUR) press the boundaries of damage resistance and strain-to-failure.
Additive manufacturing of these composites enables topology-optimized warm exchangers, microreactors, and regenerative air conditioning networks with interior lattice structures unachievable via machining.
Furthermore, their integral dielectric residential properties and thermal security make them candidates for radar-transparent radomes and antenna home windows in high-speed platforms.
As demands expand for products that do reliably under severe thermomechanical loads, Si five N ₄– SiC composites stand for an essential innovation in ceramic design, merging effectiveness with functionality in a single, sustainable system.
Finally, silicon nitride– silicon carbide composite ceramics exhibit the power of materials-by-design, leveraging the staminas of two advanced ceramics to develop a crossbreed system capable of thriving in one of the most serious operational settings.
Their proceeded growth will play a main duty in advancing clean energy, aerospace, and commercial modern technologies in the 21st century.
