1. Product Structures and Synergistic Design
1.1 Inherent Features of Component Phases

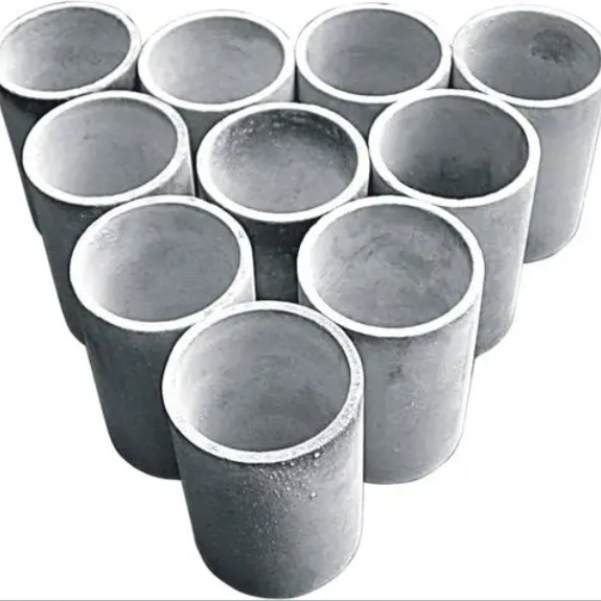

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si four N FOUR) and silicon carbide (SiC) are both covalently bonded, non-oxide porcelains renowned for their outstanding efficiency in high-temperature, harsh, and mechanically demanding environments.
Silicon nitride displays impressive crack toughness, thermal shock resistance, and creep stability due to its one-of-a-kind microstructure made up of lengthened β-Si five N four grains that make it possible for split deflection and bridging mechanisms.
It maintains toughness up to 1400 ° C and has a fairly reduced thermal growth coefficient (~ 3.2 × 10 ⁻⁶/ K), decreasing thermal stresses throughout fast temperature modifications.
In contrast, silicon carbide uses superior hardness, thermal conductivity (up to 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it optimal for rough and radiative warm dissipation applications.
Its large bandgap (~ 3.3 eV for 4H-SiC) additionally gives superb electric insulation and radiation resistance, beneficial in nuclear and semiconductor contexts.
When integrated into a composite, these products show complementary actions: Si five N ₄ boosts durability and damage resistance, while SiC enhances thermal management and put on resistance.
The resulting crossbreed ceramic accomplishes a balance unattainable by either stage alone, developing a high-performance structural product customized for extreme service problems.
1.2 Composite Style and Microstructural Engineering
The layout of Si six N FOUR– SiC composites entails accurate control over stage distribution, grain morphology, and interfacial bonding to make best use of collaborating effects.
Typically, SiC is presented as great particulate support (ranging from submicron to 1 µm) within a Si three N four matrix, although functionally rated or split designs are additionally checked out for specialized applications.
During sintering– generally through gas-pressure sintering (GENERAL PRACTITIONER) or warm pushing– SiC fragments affect the nucleation and growth kinetics of β-Si two N ₄ grains, usually advertising finer and more evenly oriented microstructures.
This improvement enhances mechanical homogeneity and lowers problem dimension, adding to enhanced stamina and integrity.
Interfacial compatibility in between both phases is critical; since both are covalent ceramics with similar crystallographic symmetry and thermal growth habits, they develop meaningful or semi-coherent borders that withstand debonding under lots.
Ingredients such as yttria (Y ₂ O FOUR) and alumina (Al two O FOUR) are utilized as sintering aids to promote liquid-phase densification of Si three N ₄ without endangering the stability of SiC.
However, too much additional phases can break down high-temperature efficiency, so composition and processing have to be optimized to reduce lustrous grain boundary films.
2. Processing Techniques and Densification Obstacles
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Preparation and Shaping Techniques
Top Notch Si Five N FOUR– SiC composites start with uniform blending of ultrafine, high-purity powders using damp sphere milling, attrition milling, or ultrasonic dispersion in organic or aqueous media.
Accomplishing uniform dispersion is essential to stop agglomeration of SiC, which can function as stress and anxiety concentrators and reduce fracture durability.
Binders and dispersants are contributed to support suspensions for shaping techniques such as slip casting, tape casting, or injection molding, depending on the preferred element geometry.
Eco-friendly bodies are then carefully dried out and debound to get rid of organics before sintering, a process calling for controlled home heating rates to prevent fracturing or warping.
For near-net-shape production, additive strategies like binder jetting or stereolithography are emerging, making it possible for complicated geometries formerly unreachable with standard ceramic processing.
These methods need customized feedstocks with optimized rheology and environment-friendly strength, usually involving polymer-derived porcelains or photosensitive materials packed with composite powders.
2.2 Sintering Devices and Stage Security
Densification of Si Four N ₄– SiC composites is testing due to the strong covalent bonding and restricted self-diffusion of nitrogen and carbon at sensible temperatures.
Liquid-phase sintering making use of rare-earth or alkaline earth oxides (e.g., Y ₂ O THREE, MgO) reduces the eutectic temperature and improves mass transport via a short-term silicate thaw.
Under gas stress (commonly 1– 10 MPa N TWO), this melt facilitates reformation, solution-precipitation, and last densification while suppressing decay of Si ₃ N FOUR.
The visibility of SiC impacts viscosity and wettability of the fluid stage, possibly altering grain growth anisotropy and last appearance.
Post-sintering warm treatments might be related to crystallize recurring amorphous phases at grain limits, boosting high-temperature mechanical residential properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are regularly made use of to validate stage purity, lack of undesirable second stages (e.g., Si ₂ N TWO O), and consistent microstructure.
3. Mechanical and Thermal Performance Under Load
3.1 Strength, Sturdiness, and Fatigue Resistance
Si Five N FOUR– SiC compounds demonstrate exceptional mechanical efficiency compared to monolithic porcelains, with flexural toughness going beyond 800 MPa and fracture toughness values reaching 7– 9 MPa · m ONE/ TWO.
The enhancing impact of SiC fragments restrains misplacement movement and split proliferation, while the extended Si ₃ N four grains remain to offer toughening with pull-out and bridging systems.
This dual-toughening method causes a material very resistant to influence, thermal biking, and mechanical exhaustion– critical for rotating components and structural aspects in aerospace and energy systems.
Creep resistance stays superb approximately 1300 ° C, attributed to the security of the covalent network and decreased grain boundary gliding when amorphous phases are lowered.
Firmness worths usually range from 16 to 19 Grade point average, supplying excellent wear and disintegration resistance in rough settings such as sand-laden circulations or gliding calls.
3.2 Thermal Management and Ecological Toughness
The addition of SiC considerably boosts the thermal conductivity of the composite, often doubling that of pure Si two N FOUR (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) relying on SiC web content and microstructure.
This boosted warm transfer capability enables extra effective thermal monitoring in parts revealed to extreme localized home heating, such as combustion liners or plasma-facing parts.
The composite retains dimensional stability under high thermal slopes, standing up to spallation and splitting as a result of matched thermal development and high thermal shock parameter (R-value).
Oxidation resistance is one more crucial benefit; SiC develops a protective silica (SiO TWO) layer upon exposure to oxygen at raised temperature levels, which additionally densifies and seals surface area problems.
This passive layer secures both SiC and Si Four N FOUR (which also oxidizes to SiO ₂ and N TWO), ensuring long-term durability in air, vapor, or burning environments.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Energy, and Industrial Equipment
Si Four N FOUR– SiC compounds are increasingly deployed in next-generation gas turbines, where they enable higher operating temperatures, improved fuel efficiency, and decreased cooling requirements.
Components such as generator blades, combustor liners, and nozzle guide vanes benefit from the product’s ability to stand up to thermal biking and mechanical loading without substantial degradation.
In nuclear reactors, particularly high-temperature gas-cooled reactors (HTGRs), these compounds act as gas cladding or architectural assistances because of their neutron irradiation resistance and fission product retention ability.
In industrial settings, they are utilized in liquified metal handling, kiln furniture, and wear-resistant nozzles and bearings, where traditional steels would certainly fall short too soon.
Their light-weight nature (thickness ~ 3.2 g/cm TWO) likewise makes them attractive for aerospace propulsion and hypersonic vehicle parts based on aerothermal heating.
4.2 Advanced Manufacturing and Multifunctional Assimilation
Arising research focuses on creating functionally graded Si five N ₄– SiC frameworks, where composition varies spatially to optimize thermal, mechanical, or electromagnetic residential properties across a solitary element.
Hybrid systems including CMC (ceramic matrix composite) styles with fiber support (e.g., SiC_f/ SiC– Si Four N FOUR) press the boundaries of damage tolerance and strain-to-failure.
Additive production of these composites makes it possible for topology-optimized heat exchangers, microreactors, and regenerative cooling channels with interior latticework structures unachievable via machining.
In addition, their fundamental dielectric buildings and thermal security make them prospects for radar-transparent radomes and antenna home windows in high-speed platforms.
As demands grow for materials that perform reliably under severe thermomechanical tons, Si six N ₄– SiC composites stand for a crucial advancement in ceramic engineering, merging toughness with performance in a solitary, lasting system.
Finally, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the toughness of 2 innovative porcelains to create a hybrid system capable of prospering in one of the most severe operational settings.
Their proceeded growth will play a main role beforehand clean energy, aerospace, and industrial innovations in the 21st century.
