1. The Nanoscale Design and Product Scientific Research of Aerogels
1.1 Genesis and Essential Structure of Aerogel Products

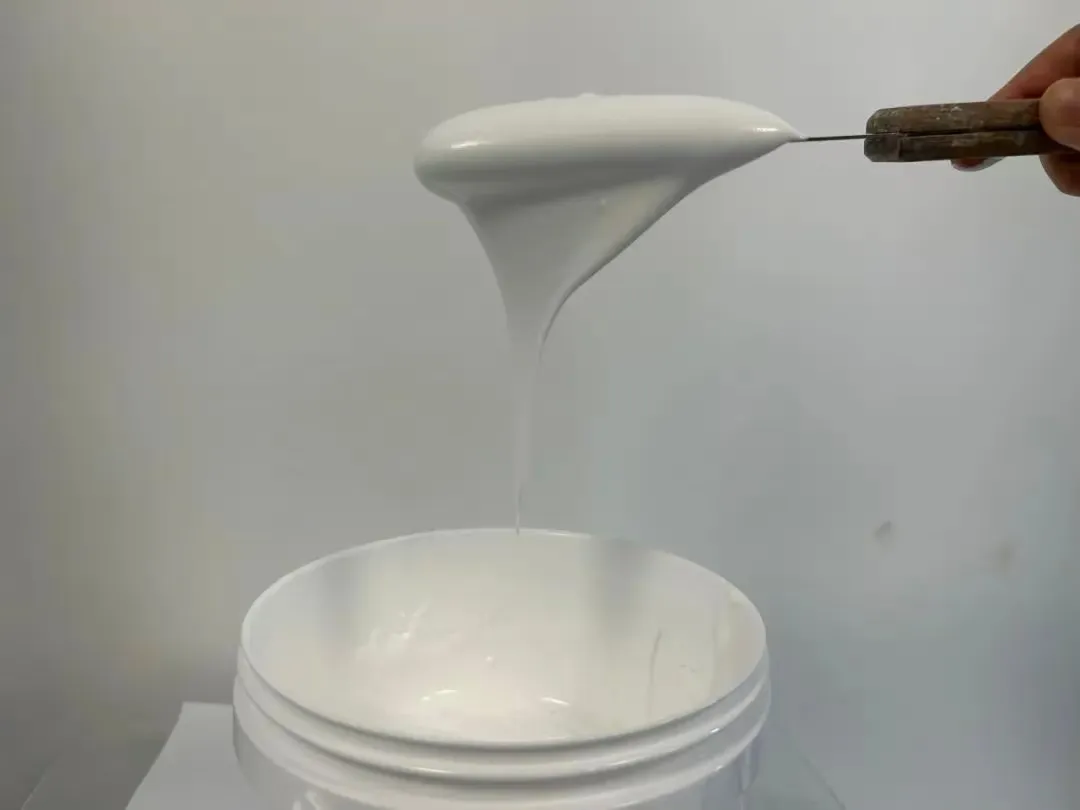

(Aerogel Insulation Coatings)
Aerogel insulation coverings represent a transformative development in thermal management innovation, rooted in the one-of-a-kind nanostructure of aerogels– ultra-lightweight, porous materials derived from gels in which the fluid component is changed with gas without falling down the solid network.
First created in the 1930s by Samuel Kistler, aerogels stayed largely laboratory interests for decades due to delicacy and high manufacturing costs.
However, recent innovations in sol-gel chemistry and drying out techniques have actually allowed the combination of aerogel fragments right into adaptable, sprayable, and brushable covering formulations, opening their capacity for extensive commercial application.
The core of aerogel’s extraordinary insulating ability lies in its nanoscale permeable framework: normally composed of silica (SiO â‚‚), the product shows porosity exceeding 90%, with pore sizes primarily in the 2– 50 nm array– well below the mean totally free path of air molecules (~ 70 nm at ambient conditions).
This nanoconfinement substantially reduces gaseous thermal transmission, as air molecules can not efficiently move kinetic energy with accidents within such confined areas.
Simultaneously, the strong silica network is engineered to be highly tortuous and discontinuous, reducing conductive warm transfer through the strong stage.
The outcome is a material with one of the lowest thermal conductivities of any kind of strong understood– usually between 0.012 and 0.018 W/m · K at room temperature– surpassing traditional insulation materials like mineral wool, polyurethane foam, or expanded polystyrene.
1.2 Development from Monolithic Aerogels to Compound Coatings
Early aerogels were produced as breakable, monolithic blocks, restricting their use to niche aerospace and scientific applications.
The shift towards composite aerogel insulation coverings has been driven by the demand for flexible, conformal, and scalable thermal obstacles that can be related to complex geometries such as pipelines, shutoffs, and irregular devices surface areas.
Modern aerogel coatings include carefully crushed aerogel granules (commonly 1– 10 µm in size) dispersed within polymeric binders such as polymers, silicones, or epoxies.
( Aerogel Insulation Coatings)
These hybrid formulas keep much of the innate thermal efficiency of pure aerogels while gaining mechanical effectiveness, attachment, and weather condition resistance.
The binder stage, while slightly boosting thermal conductivity, gives important communication and enables application through standard commercial approaches including splashing, rolling, or dipping.
Crucially, the quantity fraction of aerogel fragments is optimized to balance insulation efficiency with movie stability– generally ranging from 40% to 70% by volume in high-performance solutions.
This composite strategy protects the Knudsen effect (the suppression of gas-phase transmission in nanopores) while enabling tunable buildings such as versatility, water repellency, and fire resistance.
2. Thermal Performance and Multimodal Heat Transfer Reductions
2.1 Devices of Thermal Insulation at the Nanoscale
Aerogel insulation finishes attain their premium performance by at the same time subduing all three settings of warm transfer: transmission, convection, and radiation.
Conductive warm transfer is reduced via the mix of reduced solid-phase connectivity and the nanoporous framework that hinders gas molecule movement.
Since the aerogel network consists of very thin, interconnected silica hairs (usually simply a couple of nanometers in size), the pathway for phonon transport (heat-carrying latticework resonances) is very restricted.
This structural design successfully decouples adjacent areas of the covering, minimizing thermal connecting.
Convective warm transfer is inherently absent within the nanopores as a result of the lack of ability of air to create convection currents in such constrained areas.
Also at macroscopic ranges, effectively used aerogel finishings remove air voids and convective loopholes that plague traditional insulation systems, specifically in upright or overhanging installations.
Radiative warmth transfer, which becomes considerable at raised temperatures (> 100 ° C), is mitigated through the incorporation of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These ingredients increase the layer’s opacity to infrared radiation, scattering and absorbing thermal photons before they can traverse the coating thickness.
The harmony of these systems leads to a material that supplies comparable insulation efficiency at a portion of the thickness of conventional products– often attaining R-values (thermal resistance) a number of times higher per unit density.
2.2 Efficiency Across Temperature Level and Environmental Problems
Among one of the most compelling benefits of aerogel insulation finishes is their consistent efficiency throughout a broad temperature level spectrum, normally varying from cryogenic temperature levels (-200 ° C) to over 600 ° C, depending upon the binder system utilized.
At low temperatures, such as in LNG pipes or refrigeration systems, aerogel finishings prevent condensation and lower warm access much more efficiently than foam-based alternatives.
At high temperatures, particularly in commercial procedure equipment, exhaust systems, or power generation facilities, they secure underlying substratums from thermal degradation while reducing energy loss.
Unlike natural foams that might break down or char, silica-based aerogel layers continue to be dimensionally secure and non-combustible, contributing to passive fire protection techniques.
Moreover, their low water absorption and hydrophobic surface therapies (usually achieved via silane functionalization) protect against performance degradation in moist or damp environments– a common failure setting for coarse insulation.
3. Formulation Strategies and Useful Combination in Coatings
3.1 Binder Choice and Mechanical Residential Or Commercial Property Design
The selection of binder in aerogel insulation finishes is important to stabilizing thermal performance with sturdiness and application adaptability.
Silicone-based binders supply superb high-temperature stability and UV resistance, making them suitable for outdoor and industrial applications.
Polymer binders provide good adhesion to metals and concrete, together with convenience of application and low VOC exhausts, perfect for constructing envelopes and heating and cooling systems.
Epoxy-modified formulations enhance chemical resistance and mechanical stamina, advantageous in aquatic or corrosive environments.
Formulators likewise incorporate rheology modifiers, dispersants, and cross-linking representatives to guarantee uniform fragment circulation, stop resolving, and enhance movie formation.
Flexibility is thoroughly tuned to avoid breaking during thermal biking or substratum contortion, especially on vibrant structures like expansion joints or vibrating machinery.
3.2 Multifunctional Enhancements and Smart Finish Possible
Past thermal insulation, contemporary aerogel coverings are being crafted with added functionalities.
Some formulations consist of corrosion-inhibiting pigments or self-healing agents that extend the lifespan of metal substrates.
Others integrate phase-change materials (PCMs) within the matrix to supply thermal power storage, smoothing temperature level fluctuations in buildings or digital units.
Emerging research study discovers the assimilation of conductive nanomaterials (e.g., carbon nanotubes) to make it possible for in-situ tracking of coating integrity or temperature level circulation– paving the way for “smart” thermal monitoring systems.
These multifunctional capacities position aerogel finishings not simply as passive insulators but as energetic parts in intelligent infrastructure and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Adoption
4.1 Power Performance in Structure and Industrial Sectors
Aerogel insulation finishes are progressively released in commercial structures, refineries, and power plants to minimize energy usage and carbon emissions.
Applied to vapor lines, boilers, and warm exchangers, they significantly reduced heat loss, enhancing system efficiency and reducing gas demand.
In retrofit circumstances, their thin account allows insulation to be included without significant structural adjustments, preserving area and minimizing downtime.
In property and commercial building, aerogel-enhanced paints and plasters are made use of on walls, roofs, and home windows to boost thermal convenience and minimize a/c lots.
4.2 Specific Niche and High-Performance Applications
The aerospace, auto, and electronic devices industries leverage aerogel layers for weight-sensitive and space-constrained thermal monitoring.
In electric automobiles, they secure battery packs from thermal runaway and outside heat resources.
In electronics, ultra-thin aerogel layers protect high-power components and avoid hotspots.
Their use in cryogenic storage, space environments, and deep-sea equipment emphasizes their reliability in extreme environments.
As manufacturing ranges and costs decline, aerogel insulation finishings are positioned to come to be a foundation of next-generation lasting and resistant infrastructure.
