1. Material Basics and Crystallographic Residence
1.1 Stage Composition and Polymorphic Behavior

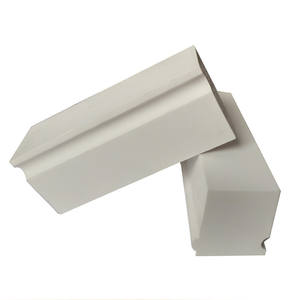

(Alumina Ceramic Blocks)
Alumina (Al ₂ O SIX), specifically in its α-phase type, is among one of the most extensively utilized technical porcelains because of its superb equilibrium of mechanical strength, chemical inertness, and thermal stability.
While aluminum oxide exists in several metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically stable crystalline framework at high temperatures, defined by a thick hexagonal close-packed (HCP) arrangement of oxygen ions with light weight aluminum cations inhabiting two-thirds of the octahedral interstitial sites.
This bought structure, referred to as diamond, confers high lattice energy and strong ionic-covalent bonding, resulting in a melting point of roughly 2054 ° C and resistance to stage improvement under extreme thermal conditions.
The transition from transitional aluminas to α-Al two O three normally occurs over 1100 ° C and is gone along with by substantial quantity shrinking and loss of surface, making stage control important throughout sintering.
High-purity α-alumina blocks (> 99.5% Al Two O FOUR) show remarkable performance in extreme atmospheres, while lower-grade compositions (90– 95%) may include second phases such as mullite or lustrous grain limit stages for cost-efficient applications.
1.2 Microstructure and Mechanical Honesty
The efficiency of alumina ceramic blocks is greatly affected by microstructural attributes consisting of grain dimension, porosity, and grain limit communication.
Fine-grained microstructures (grain size < 5 µm) normally offer higher flexural stamina (as much as 400 MPa) and improved crack toughness contrasted to grainy equivalents, as smaller sized grains impede split breeding.
Porosity, also at reduced degrees (1– 5%), significantly decreases mechanical strength and thermal conductivity, necessitating complete densification through pressure-assisted sintering methods such as hot pressing or warm isostatic pushing (HIP).
Ingredients like MgO are usually introduced in trace quantities (≈ 0.1 wt%) to hinder unusual grain growth during sintering, guaranteeing uniform microstructure and dimensional stability.
The resulting ceramic blocks display high firmness (≈ 1800 HV), superb wear resistance, and reduced creep prices at raised temperature levels, making them appropriate for load-bearing and abrasive settings.
2. Manufacturing and Handling Techniques

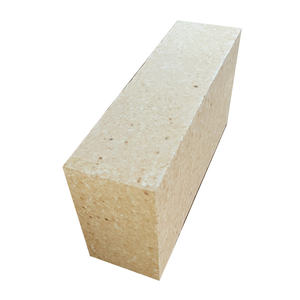

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Methods
The manufacturing of alumina ceramic blocks starts with high-purity alumina powders derived from calcined bauxite via the Bayer process or manufactured with rainfall or sol-gel routes for higher pureness.
Powders are crushed to accomplish slim bit size distribution, improving packing thickness and sinterability.
Forming into near-net geometries is achieved with numerous developing methods: uniaxial pressing for basic blocks, isostatic pressing for consistent thickness in complex forms, extrusion for long sections, and slide casting for detailed or large elements.
Each approach influences environment-friendly body density and homogeneity, which straight impact final buildings after sintering.
For high-performance applications, progressed developing such as tape spreading or gel-casting may be used to achieve superior dimensional control and microstructural uniformity.
2.2 Sintering and Post-Processing
Sintering in air at temperatures between 1600 ° C and 1750 ° C allows diffusion-driven densification, where bit necks expand and pores diminish, resulting in a fully thick ceramic body.
Ambience control and precise thermal accounts are vital to stop bloating, bending, or differential shrinking.
Post-sintering procedures consist of diamond grinding, splashing, and brightening to attain tight resistances and smooth surface area finishes needed in sealing, moving, or optical applications.
Laser reducing and waterjet machining allow accurate modification of block geometry without causing thermal tension.
Surface area treatments such as alumina layer or plasma splashing can additionally boost wear or deterioration resistance in specific service problems.
3. Practical Residences and Performance Metrics
3.1 Thermal and Electrical Actions
Alumina ceramic blocks exhibit modest thermal conductivity (20– 35 W/(m · K)), considerably higher than polymers and glasses, enabling efficient warm dissipation in electronic and thermal management systems.
They keep structural stability up to 1600 ° C in oxidizing atmospheres, with reduced thermal development (≈ 8 ppm/K), adding to superb thermal shock resistance when appropriately made.
Their high electric resistivity (> 10 ¹⁴ Ω · centimeters) and dielectric stamina (> 15 kV/mm) make them suitable electric insulators in high-voltage environments, consisting of power transmission, switchgear, and vacuum systems.
Dielectric constant (εᵣ ≈ 9– 10) remains secure over a vast frequency range, sustaining use in RF and microwave applications.
These homes enable alumina blocks to operate reliably in atmospheres where organic products would certainly deteriorate or fall short.
3.2 Chemical and Ecological Resilience
Among one of the most important qualities of alumina blocks is their extraordinary resistance to chemical assault.
They are very inert to acids (except hydrofluoric and warm phosphoric acids), alkalis (with some solubility in strong caustics at raised temperatures), and molten salts, making them suitable for chemical processing, semiconductor manufacture, and air pollution control equipment.
Their non-wetting habits with several molten steels and slags enables usage in crucibles, thermocouple sheaths, and heater cellular linings.
In addition, alumina is non-toxic, biocompatible, and radiation-resistant, expanding its energy right into clinical implants, nuclear shielding, and aerospace parts.
Marginal outgassing in vacuum cleaner settings better qualifies it for ultra-high vacuum cleaner (UHV) systems in research and semiconductor manufacturing.
4. Industrial Applications and Technological Assimilation
4.1 Structural and Wear-Resistant Components
Alumina ceramic blocks act as essential wear elements in industries ranging from extracting to paper manufacturing.
They are made use of as liners in chutes, receptacles, and cyclones to withstand abrasion from slurries, powders, and granular materials, significantly expanding life span compared to steel.
In mechanical seals and bearings, alumina obstructs supply low rubbing, high firmness, and deterioration resistance, reducing maintenance and downtime.
Custom-shaped blocks are integrated into reducing tools, dies, and nozzles where dimensional security and side retention are paramount.
Their light-weight nature (density ≈ 3.9 g/cm THREE) also adds to energy cost savings in relocating parts.
4.2 Advanced Engineering and Emerging Uses
Beyond typical functions, alumina blocks are increasingly used in sophisticated technological systems.
In electronic devices, they work as protecting substrates, warmth sinks, and laser tooth cavity parts as a result of their thermal and dielectric homes.
In power systems, they serve as strong oxide fuel cell (SOFC) components, battery separators, and combination reactor plasma-facing products.
Additive production of alumina through binder jetting or stereolithography is emerging, enabling complex geometries previously unattainable with traditional creating.
Crossbreed frameworks incorporating alumina with steels or polymers with brazing or co-firing are being developed for multifunctional systems in aerospace and protection.
As material science advances, alumina ceramic blocks remain to develop from passive structural elements into energetic parts in high-performance, sustainable design services.
In summary, alumina ceramic blocks stand for a fundamental class of innovative porcelains, combining durable mechanical performance with outstanding chemical and thermal security.
Their adaptability across commercial, digital, and clinical domain names underscores their long-lasting worth in modern engineering and innovation advancement.
