1. Product Make-up and Architectural Layout
1.1 Glass Chemistry and Spherical Architecture

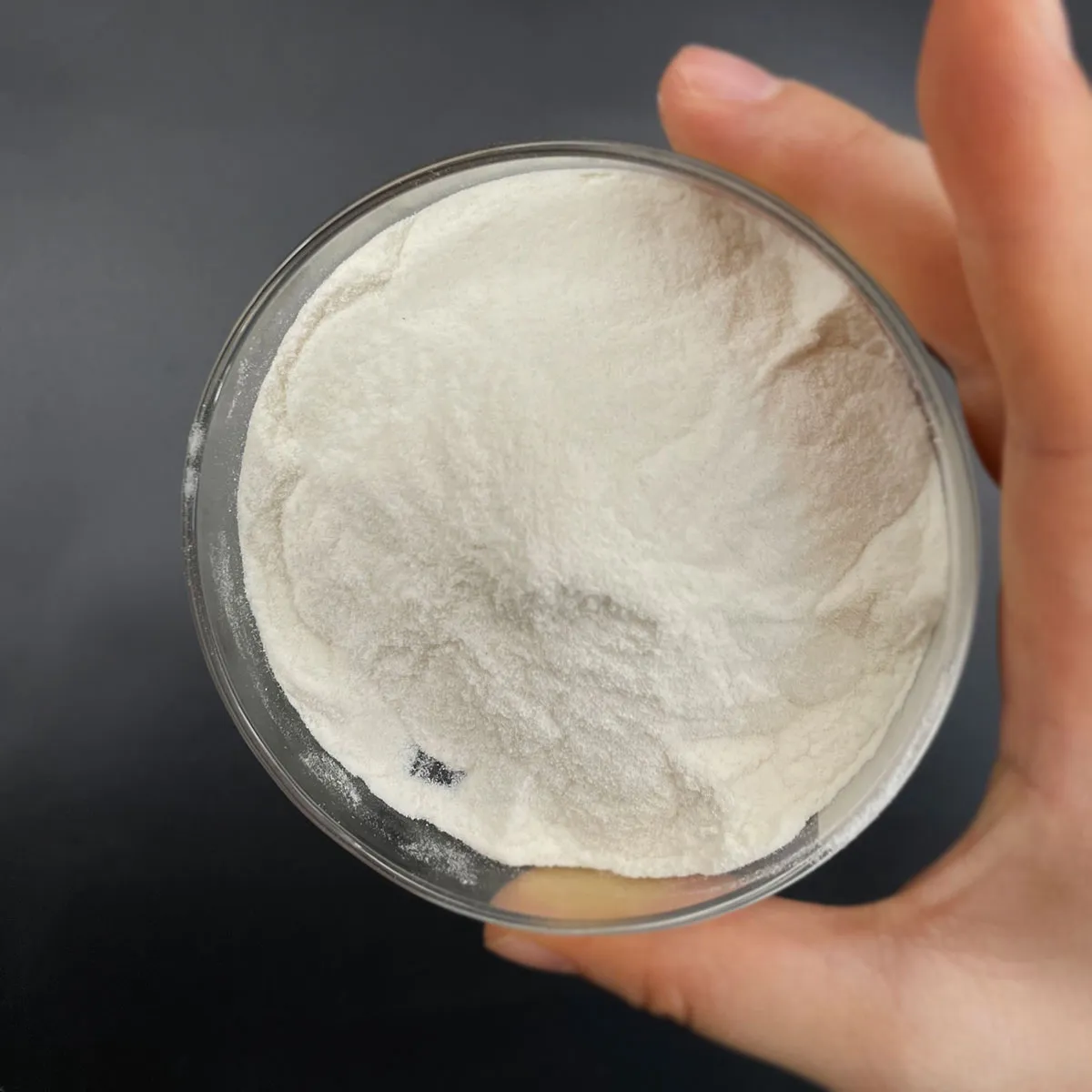

(Hollow glass microspheres)
Hollow glass microspheres (HGMs) are microscopic, spherical fragments composed of alkali borosilicate or soda-lime glass, typically ranging from 10 to 300 micrometers in diameter, with wall surface thicknesses between 0.5 and 2 micrometers.
Their specifying feature is a closed-cell, hollow inside that presents ultra-low thickness– frequently below 0.2 g/cm four for uncrushed balls– while keeping a smooth, defect-free surface area critical for flowability and composite assimilation.
The glass make-up is crafted to stabilize mechanical toughness, thermal resistance, and chemical durability; borosilicate-based microspheres supply exceptional thermal shock resistance and lower alkali material, reducing reactivity in cementitious or polymer matrices.
The hollow framework is developed through a controlled expansion procedure throughout production, where precursor glass particles containing an unstable blowing agent (such as carbonate or sulfate compounds) are heated up in a heater.
As the glass softens, internal gas generation creates interior pressure, triggering the fragment to blow up into a perfect sphere before fast air conditioning strengthens the framework.
This specific control over size, wall density, and sphericity makes it possible for predictable efficiency in high-stress design atmospheres.
1.2 Thickness, Stamina, and Failure Devices
An important efficiency statistics for HGMs is the compressive strength-to-density ratio, which establishes their ability to survive processing and service lots without fracturing.
Business qualities are classified by their isostatic crush stamina, varying from low-strength rounds (~ 3,000 psi) appropriate for finishes and low-pressure molding, to high-strength variants surpassing 15,000 psi used in deep-sea buoyancy components and oil well cementing.
Failure generally takes place via flexible bending as opposed to breakable crack, a habits controlled by thin-shell technicians and affected by surface area defects, wall surface uniformity, and interior pressure.
Once fractured, the microsphere sheds its protecting and lightweight buildings, highlighting the demand for cautious handling and matrix compatibility in composite style.
Despite their frailty under point lots, the spherical geometry distributes stress uniformly, enabling HGMs to endure significant hydrostatic stress in applications such as subsea syntactic foams.
( Hollow glass microspheres)
2. Production and Quality Control Processes
2.1 Manufacturing Techniques and Scalability
HGMs are created industrially using fire spheroidization or rotating kiln development, both including high-temperature processing of raw glass powders or preformed beads.
In fire spheroidization, great glass powder is infused right into a high-temperature fire, where surface tension draws liquified beads into rounds while interior gases expand them right into hollow structures.
Rotating kiln approaches involve feeding forerunner grains right into a revolving heating system, allowing continuous, massive manufacturing with tight control over particle size circulation.
Post-processing actions such as sieving, air category, and surface area therapy make sure constant fragment dimension and compatibility with target matrices.
Advanced manufacturing now includes surface functionalization with silane coupling agents to boost bond to polymer materials, lowering interfacial slippage and enhancing composite mechanical homes.
2.2 Characterization and Efficiency Metrics
Quality assurance for HGMs relies on a collection of logical methods to confirm critical criteria.
Laser diffraction and scanning electron microscopy (SEM) examine fragment dimension distribution and morphology, while helium pycnometry gauges real particle density.
Crush strength is examined using hydrostatic stress tests or single-particle compression in nanoindentation systems.
Bulk and tapped density dimensions inform dealing with and blending behavior, important for industrial formula.
Thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC) evaluate thermal stability, with a lot of HGMs remaining stable up to 600– 800 ° C, depending upon structure.
These standard tests make certain batch-to-batch consistency and enable trustworthy performance prediction in end-use applications.
3. Useful Residences and Multiscale Impacts
3.1 Density Decrease and Rheological Actions
The key function of HGMs is to lower the thickness of composite materials without significantly jeopardizing mechanical stability.
By changing strong resin or metal with air-filled spheres, formulators attain weight cost savings of 20– 50% in polymer composites, adhesives, and cement systems.
This lightweighting is critical in aerospace, marine, and auto sectors, where minimized mass equates to boosted fuel efficiency and payload capacity.
In liquid systems, HGMs affect rheology; their spherical shape lowers viscosity contrasted to irregular fillers, enhancing circulation and moldability, though high loadings can raise thixotropy due to particle communications.
Appropriate diffusion is essential to prevent load and ensure uniform buildings throughout the matrix.
3.2 Thermal and Acoustic Insulation Feature
The entrapped air within HGMs provides exceptional thermal insulation, with reliable thermal conductivity values as reduced as 0.04– 0.08 W/(m · K), depending upon quantity fraction and matrix conductivity.
This makes them valuable in shielding coatings, syntactic foams for subsea pipes, and fire-resistant structure materials.
The closed-cell structure likewise hinders convective warm transfer, enhancing efficiency over open-cell foams.
Similarly, the impedance mismatch between glass and air scatters sound waves, offering modest acoustic damping in noise-control applications such as engine units and marine hulls.
While not as reliable as devoted acoustic foams, their twin role as light-weight fillers and second dampers includes useful worth.
4. Industrial and Arising Applications
4.1 Deep-Sea Engineering and Oil & Gas Equipments
Among one of the most requiring applications of HGMs remains in syntactic foams for deep-ocean buoyancy components, where they are installed in epoxy or plastic ester matrices to create compounds that withstand severe hydrostatic stress.
These materials maintain positive buoyancy at depths going beyond 6,000 meters, enabling independent undersea lorries (AUVs), subsea sensors, and overseas drilling tools to run without heavy flotation protection storage tanks.
In oil well cementing, HGMs are contributed to cement slurries to decrease thickness and avoid fracturing of weak formations, while likewise enhancing thermal insulation in high-temperature wells.
Their chemical inertness makes certain long-lasting stability in saline and acidic downhole environments.
4.2 Aerospace, Automotive, and Sustainable Technologies
In aerospace, HGMs are used in radar domes, interior panels, and satellite parts to minimize weight without compromising dimensional stability.
Automotive producers integrate them right into body panels, underbody finishings, and battery enclosures for electric automobiles to boost power performance and minimize emissions.
Arising usages consist of 3D printing of lightweight frameworks, where HGM-filled resins enable facility, low-mass parts for drones and robotics.
In lasting building and construction, HGMs enhance the shielding residential or commercial properties of light-weight concrete and plasters, adding to energy-efficient structures.
Recycled HGMs from industrial waste streams are also being checked out to improve the sustainability of composite materials.
Hollow glass microspheres exemplify the power of microstructural design to change bulk product residential properties.
By incorporating reduced thickness, thermal security, and processability, they make it possible for technologies throughout marine, power, transportation, and ecological fields.
As material science developments, HGMs will remain to play an important duty in the development of high-performance, lightweight products for future innovations.
5. Supplier
TRUNNANO is a supplier of Hollow Glass Microspheres with over 12 years of experience in nano-building energy conservation and nanotechnology development. It accepts payment via Credit Card, T/T, West Union and Paypal. Trunnano will ship the goods to customers overseas through FedEx, DHL, by air, or by sea. If you want to know more about Hollow Glass Microspheres, please feel free to contact us and send an inquiry.
