1. The Scientific research and Framework of Alumina Ceramic Products
1.1 Crystallography and Compositional Versions of Light Weight Aluminum Oxide

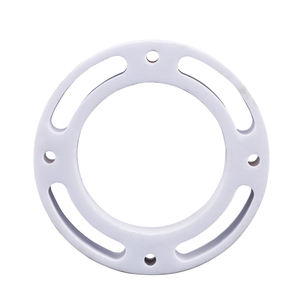

(Alumina Ceramics Rings)
Alumina ceramic rings are produced from aluminum oxide (Al two O THREE), a compound renowned for its exceptional balance of mechanical stamina, thermal stability, and electric insulation.
The most thermodynamically steady and industrially appropriate stage of alumina is the alpha (α) stage, which crystallizes in a hexagonal close-packed (HCP) structure coming from the diamond household.
In this plan, oxygen ions form a dense latticework with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial sites, resulting in a very stable and robust atomic framework.
While pure alumina is theoretically 100% Al Two O THREE, industrial-grade materials commonly have small percentages of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y ₂ O SIX) to regulate grain development throughout sintering and enhance densification.
Alumina ceramics are classified by purity levels: 96%, 99%, and 99.8% Al ₂ O three are common, with higher pureness associating to improved mechanical residential properties, thermal conductivity, and chemical resistance.
The microstructure– especially grain dimension, porosity, and stage circulation– plays an essential duty in determining the last efficiency of alumina rings in service environments.
1.2 Secret Physical and Mechanical Quality
Alumina ceramic rings exhibit a collection of homes that make them indispensable popular industrial settings.
They have high compressive strength (as much as 3000 MPa), flexural toughness (usually 350– 500 MPa), and outstanding firmness (1500– 2000 HV), enabling resistance to use, abrasion, and contortion under load.
Their reduced coefficient of thermal growth (roughly 7– 8 × 10 ⁻⁶/ K) makes sure dimensional security across broad temperature level arrays, decreasing thermal tension and breaking throughout thermal biking.
Thermal conductivity varieties from 20 to 30 W/m · K, relying on pureness, allowing for modest heat dissipation– enough for numerous high-temperature applications without the requirement for active air conditioning.

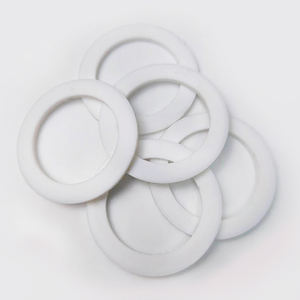

( Alumina Ceramics Ring)
Electrically, alumina is an impressive insulator with a quantity resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric stamina of around 10– 15 kV/mm, making it suitable for high-voltage insulation components.
Additionally, alumina shows outstanding resistance to chemical strike from acids, antacid, and molten steels, although it is prone to strike by strong alkalis and hydrofluoric acid at raised temperature levels.
2. Manufacturing and Accuracy Design of Alumina Bands
2.1 Powder Processing and Shaping Techniques
The production of high-performance alumina ceramic rings begins with the option and prep work of high-purity alumina powder.
Powders are typically synthesized through calcination of aluminum hydroxide or via progressed techniques like sol-gel handling to accomplish fine bit size and narrow dimension distribution.
To form the ring geometry, a number of forming methods are utilized, consisting of:
Uniaxial pushing: where powder is compressed in a die under high stress to form a “eco-friendly” ring.
Isostatic pushing: applying consistent stress from all instructions making use of a fluid medium, leading to higher density and even more uniform microstructure, particularly for complex or big rings.
Extrusion: appropriate for long cylindrical forms that are later on cut right into rings, frequently utilized for lower-precision applications.
Injection molding: used for intricate geometries and tight resistances, where alumina powder is mixed with a polymer binder and injected right into a mold.
Each approach influences the final thickness, grain positioning, and issue circulation, demanding mindful procedure option based upon application demands.
2.2 Sintering and Microstructural Growth
After shaping, the green rings undergo high-temperature sintering, typically in between 1500 ° C and 1700 ° C in air or regulated atmospheres.
During sintering, diffusion devices drive fragment coalescence, pore elimination, and grain development, causing a fully thick ceramic body.
The price of heating, holding time, and cooling down profile are specifically controlled to stop fracturing, bending, or overstated grain development.
Additives such as MgO are frequently introduced to inhibit grain boundary movement, leading to a fine-grained microstructure that enhances mechanical stamina and dependability.
Post-sintering, alumina rings may undertake grinding and washing to achieve limited dimensional resistances ( ± 0.01 mm) and ultra-smooth surface area finishes (Ra < 0.1 µm), critical for securing, birthing, and electrical insulation applications.
3. Practical Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are commonly made use of in mechanical systems because of their wear resistance and dimensional security.
Key applications include:
Sealing rings in pumps and shutoffs, where they stand up to disintegration from rough slurries and harsh liquids in chemical processing and oil & gas markets.
Birthing parts in high-speed or corrosive environments where metal bearings would degrade or need frequent lubrication.
Overview rings and bushings in automation devices, supplying low friction and lengthy life span without the requirement for greasing.
Use rings in compressors and turbines, decreasing clearance in between rotating and stationary parts under high-pressure conditions.
Their capability to preserve performance in dry or chemically hostile environments makes them superior to several metallic and polymer options.
3.2 Thermal and Electric Insulation Functions
In high-temperature and high-voltage systems, alumina rings function as vital shielding components.
They are utilized as:
Insulators in burner and heater components, where they sustain resistive cords while enduring temperature levels above 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, preventing electrical arcing while keeping hermetic seals.
Spacers and assistance rings in power electronics and switchgear, isolating conductive parts in transformers, circuit breakers, and busbar systems.
Dielectric rings in RF and microwave devices, where their low dielectric loss and high break down stamina make certain signal integrity.
The mix of high dielectric toughness and thermal stability enables alumina rings to operate reliably in atmospheres where organic insulators would deteriorate.
4. Material Developments and Future Outlook
4.1 Compound and Doped Alumina Solutions
To better improve performance, researchers and suppliers are developing sophisticated alumina-based compounds.
Instances consist of:
Alumina-zirconia (Al Two O FOUR-ZrO ₂) compounds, which show enhanced fracture strength with transformation toughening systems.
Alumina-silicon carbide (Al ₂ O SIX-SiC) nanocomposites, where nano-sized SiC bits boost solidity, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can change grain border chemistry to boost high-temperature stamina and oxidation resistance.
These hybrid products prolong the functional envelope of alumina rings into even more extreme conditions, such as high-stress vibrant loading or rapid thermal cycling.
4.2 Arising Patterns and Technical Assimilation
The future of alumina ceramic rings depends on clever integration and precision production.
Trends consist of:
Additive manufacturing (3D printing) of alumina parts, enabling intricate internal geometries and tailored ring styles formerly unattainable via standard techniques.
Useful grading, where composition or microstructure varies throughout the ring to enhance efficiency in different areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ monitoring via embedded sensors in ceramic rings for anticipating upkeep in commercial machinery.
Increased usage in renewable resource systems, such as high-temperature gas cells and concentrated solar energy plants, where product dependability under thermal and chemical stress is vital.
As markets demand greater performance, longer lifespans, and minimized maintenance, alumina ceramic rings will continue to play a crucial role in allowing next-generation engineering services.
