1. Product Fundamentals and Structural Features of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

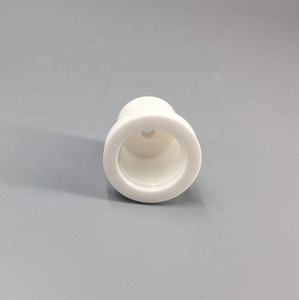

(Alumina Ceramic Substrates)
Alumina ceramic substratums, largely composed of light weight aluminum oxide (Al ₂ O ₃), work as the foundation of contemporary digital packaging due to their remarkable balance of electric insulation, thermal stability, mechanical toughness, and manufacturability.
One of the most thermodynamically secure phase of alumina at high temperatures is diamond, or α-Al Two O FOUR, which takes shape in a hexagonal close-packed oxygen lattice with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial websites.
This thick atomic setup conveys high firmness (Mohs 9), outstanding wear resistance, and strong chemical inertness, making α-alumina appropriate for harsh operating environments.
Commercial substratums commonly consist of 90– 99.8% Al Two O SIX, with minor enhancements of silica (SiO ₂), magnesia (MgO), or unusual earth oxides used as sintering aids to advertise densification and control grain development during high-temperature processing.
Higher pureness grades (e.g., 99.5% and over) show exceptional electrical resistivity and thermal conductivity, while reduced purity versions (90– 96%) offer cost-efficient remedies for much less requiring applications.
1.2 Microstructure and Issue Engineering for Electronic Reliability
The efficiency of alumina substrates in digital systems is critically dependent on microstructural harmony and issue minimization.
A penalty, equiaxed grain framework– generally ranging from 1 to 10 micrometers– guarantees mechanical integrity and lowers the chance of crack proliferation under thermal or mechanical tension.
Porosity, specifically interconnected or surface-connected pores, must be lessened as it degrades both mechanical strength and dielectric performance.
Advanced handling methods such as tape casting, isostatic pushing, and regulated sintering in air or regulated atmospheres enable the production of substratums with near-theoretical density (> 99.5%) and surface area roughness listed below 0.5 µm, important for thin-film metallization and wire bonding.
Furthermore, contamination segregation at grain borders can lead to leak currents or electrochemical migration under bias, necessitating strict control over basic material purity and sintering problems to guarantee long-term dependability in moist or high-voltage environments.
2. Production Processes and Substratum Construction Technologies
( Alumina Ceramic Substrates)
2.1 Tape Casting and Eco-friendly Body Handling
The production of alumina ceramic substratums starts with the preparation of a very dispersed slurry consisting of submicron Al two O ₃ powder, natural binders, plasticizers, dispersants, and solvents.
This slurry is refined via tape spreading– a constant technique where the suspension is topped a moving carrier film utilizing an accuracy doctor blade to achieve uniform density, generally between 0.1 mm and 1.0 mm.
After solvent evaporation, the resulting “environment-friendly tape” is adaptable and can be punched, drilled, or laser-cut to create via openings for vertical affiliations.
Multiple layers may be laminated to create multilayer substrates for complicated circuit assimilation, although most of industrial applications use single-layer setups because of set you back and thermal expansion considerations.
The green tapes are then carefully debound to eliminate organic ingredients via regulated thermal decomposition prior to final sintering.
2.2 Sintering and Metallization for Circuit Integration
Sintering is carried out in air at temperature levels between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore elimination and grain coarsening to attain full densification.
The straight contraction throughout sintering– normally 15– 20%– have to be specifically forecasted and compensated for in the design of eco-friendly tapes to make sure dimensional accuracy of the last substratum.
Following sintering, metallization is applied to develop conductive traces, pads, and vias.
2 main techniques control: thick-film printing and thin-film deposition.
In thick-film modern technology, pastes containing metal powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substrate and co-fired in a decreasing atmosphere to create robust, high-adhesion conductors.
For high-density or high-frequency applications, thin-film processes such as sputtering or dissipation are made use of to deposit bond layers (e.g., titanium or chromium) followed by copper or gold, enabling sub-micron patterning by means of photolithography.
Vias are full of conductive pastes and discharged to develop electric interconnections in between layers in multilayer designs.
3. Practical Residences and Performance Metrics in Electronic Equipment
3.1 Thermal and Electric Actions Under Functional Stress And Anxiety
Alumina substrates are valued for their beneficial combination of modest thermal conductivity (20– 35 W/m · K for 96– 99.8% Al Two O TWO), which allows efficient heat dissipation from power devices, and high volume resistivity (> 10 ¹⁴ Ω · cm), making sure marginal leak current.
Their dielectric constant (εᵣ ≈ 9– 10 at 1 MHz) is secure over a large temperature and regularity array, making them suitable for high-frequency circuits up to several ghzs, although lower-κ products like light weight aluminum nitride are liked for mm-wave applications.
The coefficient of thermal growth (CTE) of alumina (~ 6.8– 7.2 ppm/K) is fairly well-matched to that of silicon (~ 3 ppm/K) and specific product packaging alloys, decreasing thermo-mechanical anxiety throughout gadget operation and thermal biking.
However, the CTE inequality with silicon stays a concern in flip-chip and straight die-attach configurations, commonly calling for compliant interposers or underfill products to alleviate tiredness failure.
3.2 Mechanical Toughness and Environmental Toughness
Mechanically, alumina substratums show high flexural stamina (300– 400 MPa) and superb dimensional security under lots, enabling their use in ruggedized electronic devices for aerospace, auto, and industrial control systems.
They are resistant to vibration, shock, and creep at raised temperatures, keeping architectural stability as much as 1500 ° C in inert atmospheres.
In moist environments, high-purity alumina shows very little wetness absorption and excellent resistance to ion movement, guaranteeing long-lasting reliability in outdoor and high-humidity applications.
Surface area firmness also secures against mechanical damages throughout handling and assembly, although care should be required to prevent edge breaking due to inherent brittleness.
4. Industrial Applications and Technological Effect Across Sectors
4.1 Power Electronic Devices, RF Modules, and Automotive Solutions
Alumina ceramic substratums are ubiquitous in power electronic modules, consisting of protected entrance bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they supply electrical seclusion while promoting warm transfer to warm sinks.
In radio frequency (RF) and microwave circuits, they work as provider systems for hybrid integrated circuits (HICs), surface area acoustic wave (SAW) filters, and antenna feed networks due to their steady dielectric residential properties and low loss tangent.
In the automotive industry, alumina substratums are utilized in engine control units (ECUs), sensing unit plans, and electrical automobile (EV) power converters, where they sustain high temperatures, thermal cycling, and exposure to corrosive liquids.
Their reliability under harsh conditions makes them important for safety-critical systems such as anti-lock stopping (ABDOMINAL MUSCLE) and progressed vehicle driver support systems (ADAS).
4.2 Medical Instruments, Aerospace, and Emerging Micro-Electro-Mechanical Systems
Past customer and industrial electronics, alumina substratums are used in implantable medical tools such as pacemakers and neurostimulators, where hermetic securing and biocompatibility are vital.
In aerospace and protection, they are utilized in avionics, radar systems, and satellite interaction modules due to their radiation resistance and stability in vacuum cleaner settings.
Moreover, alumina is progressively used as an architectural and shielding system in micro-electro-mechanical systems (MEMS), including stress sensing units, accelerometers, and microfluidic gadgets, where its chemical inertness and compatibility with thin-film handling are useful.
As digital systems remain to demand higher power thickness, miniaturization, and integrity under severe conditions, alumina ceramic substratums remain a keystone product, linking the gap between performance, price, and manufacturability in innovative digital packaging.
