1. Composition and Structural Features of Fused Quartz
1.1 Amorphous Network and Thermal Security

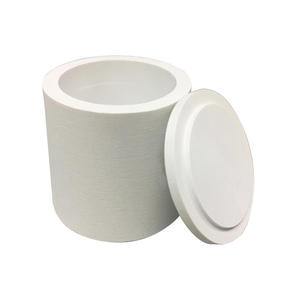

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from fused silica, a synthetic form of silicon dioxide (SiO TWO) originated from the melting of all-natural quartz crystals at temperatures exceeding 1700 ° C.
Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts exceptional thermal shock resistance and dimensional security under quick temperature level adjustments.
This disordered atomic structure stops cleavage along crystallographic planes, making merged silica less vulnerable to fracturing throughout thermal cycling contrasted to polycrystalline porcelains.
The product exhibits a reduced coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), one of the most affordable amongst engineering products, enabling it to endure extreme thermal gradients without fracturing– a vital home in semiconductor and solar cell manufacturing.
Integrated silica likewise keeps superb chemical inertness against many acids, molten steels, and slags, although it can be gradually etched by hydrofluoric acid and warm phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending on pureness and OH content) permits continual procedure at raised temperatures needed for crystal development and metal refining processes.
1.2 Pureness Grading and Trace Element Control
The performance of quartz crucibles is highly depending on chemical purity, specifically the concentration of metal contaminations such as iron, sodium, potassium, light weight aluminum, and titanium.
Even trace amounts (components per million level) of these contaminants can migrate right into liquified silicon throughout crystal growth, breaking down the electrical buildings of the resulting semiconductor material.
High-purity grades made use of in electronic devices making generally have over 99.95% SiO ₂, with alkali metal oxides limited to much less than 10 ppm and transition metals below 1 ppm.
Contaminations originate from raw quartz feedstock or processing equipment and are minimized with mindful option of mineral sources and purification strategies like acid leaching and flotation protection.
In addition, the hydroxyl (OH) content in integrated silica influences its thermomechanical habits; high-OH kinds supply better UV transmission but reduced thermal security, while low-OH versions are liked for high-temperature applications due to lowered bubble formation.
( Quartz Crucibles)
2. Manufacturing Process and Microstructural Style
2.1 Electrofusion and Developing Methods
Quartz crucibles are mainly created via electrofusion, a process in which high-purity quartz powder is fed into a revolving graphite mold and mildew within an electrical arc furnace.
An electrical arc generated between carbon electrodes melts the quartz fragments, which strengthen layer by layer to create a smooth, dense crucible form.
This technique produces a fine-grained, uniform microstructure with minimal bubbles and striae, necessary for consistent warm circulation and mechanical stability.
Different approaches such as plasma blend and flame blend are utilized for specialized applications requiring ultra-low contamination or certain wall thickness profiles.
After casting, the crucibles go through regulated air conditioning (annealing) to ease interior stress and anxieties and protect against spontaneous fracturing during service.
Surface area ending up, including grinding and polishing, ensures dimensional precision and decreases nucleation websites for unwanted condensation throughout usage.
2.2 Crystalline Layer Design and Opacity Control
A defining function of modern quartz crucibles, particularly those utilized in directional solidification of multicrystalline silicon, is the crafted inner layer framework.
Throughout manufacturing, the internal surface is often dealt with to advertise the formation of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO TWO– upon very first home heating.
This cristobalite layer acts as a diffusion barrier, reducing direct communication in between molten silicon and the underlying merged silica, consequently decreasing oxygen and metal contamination.
Furthermore, the visibility of this crystalline phase enhances opacity, boosting infrared radiation absorption and advertising more consistent temperature level circulation within the thaw.
Crucible designers meticulously balance the density and continuity of this layer to avoid spalling or splitting because of quantity adjustments during stage changes.
3. Functional Efficiency in High-Temperature Applications
3.1 Function in Silicon Crystal Development Processes
Quartz crucibles are indispensable in the manufacturing of monocrystalline and multicrystalline silicon, acting as the key container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped right into molten silicon kept in a quartz crucible and gradually pulled upward while revolving, allowing single-crystal ingots to develop.
Although the crucible does not directly get in touch with the expanding crystal, interactions between molten silicon and SiO two walls result in oxygen dissolution into the melt, which can influence carrier life time and mechanical toughness in completed wafers.
In DS procedures for photovoltaic-grade silicon, massive quartz crucibles make it possible for the controlled air conditioning of hundreds of kilos of liquified silicon right into block-shaped ingots.
Here, layers such as silicon nitride (Si two N FOUR) are related to the inner surface area to prevent attachment and facilitate easy launch of the solidified silicon block after cooling down.
3.2 Degradation Systems and Life Span Limitations
Despite their effectiveness, quartz crucibles degrade throughout repeated high-temperature cycles due to numerous related devices.
Thick flow or contortion takes place at long term exposure over 1400 ° C, leading to wall surface thinning and loss of geometric honesty.
Re-crystallization of fused silica right into cristobalite produces interior tensions due to volume growth, possibly triggering splits or spallation that infect the melt.
Chemical disintegration occurs from decrease responses between liquified silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), producing unstable silicon monoxide that runs away and deteriorates the crucible wall surface.
Bubble formation, driven by caught gases or OH teams, additionally endangers structural strength and thermal conductivity.
These destruction paths restrict the number of reuse cycles and necessitate exact procedure control to make best use of crucible lifespan and product yield.
4. Arising Technologies and Technological Adaptations
4.1 Coatings and Compound Modifications
To boost efficiency and resilience, advanced quartz crucibles incorporate useful layers and composite structures.
Silicon-based anti-sticking layers and doped silica coatings boost launch features and reduce oxygen outgassing during melting.
Some producers incorporate zirconia (ZrO TWO) bits right into the crucible wall to increase mechanical strength and resistance to devitrification.
Research is continuous right into fully transparent or gradient-structured crucibles developed to optimize induction heat transfer in next-generation solar heater styles.
4.2 Sustainability and Recycling Obstacles
With increasing demand from the semiconductor and photovoltaic or pv industries, lasting use quartz crucibles has ended up being a concern.
Spent crucibles contaminated with silicon residue are challenging to recycle due to cross-contamination threats, leading to significant waste generation.
Efforts focus on creating reusable crucible liners, improved cleaning protocols, and closed-loop recycling systems to recuperate high-purity silica for secondary applications.
As gadget efficiencies demand ever-higher material pureness, the duty of quartz crucibles will continue to develop through development in materials scientific research and process engineering.
In summary, quartz crucibles stand for an essential user interface between basic materials and high-performance digital items.
Their one-of-a-kind mix of purity, thermal durability, and structural style enables the construction of silicon-based innovations that power modern computer and renewable energy systems.
