1. Material Principles and Microstructural Attributes of Alumina Ceramics
1.1 Composition, Pureness Qualities, and Crystallographic Quality

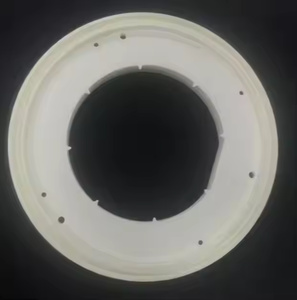

(Alumina Ceramic Wear Liners)
Alumina (Al Two O ā), or light weight aluminum oxide, is just one of one of the most widely used technical porcelains in industrial engineering because of its exceptional equilibrium of mechanical strength, chemical stability, and cost-effectiveness.
When engineered into wear liners, alumina ceramics are typically made with pureness degrees ranging from 85% to 99.9%, with greater pureness corresponding to enhanced hardness, put on resistance, and thermal performance.
The dominant crystalline phase is alpha-alumina, which adopts a hexagonal close-packed (HCP) structure defined by solid ionic and covalent bonding, adding to its high melting point (~ 2072 Ā° C )and low thermal conductivity.
Microstructurally, alumina ceramics include fine, equiaxed grains whose dimension and distribution are regulated throughout sintering to optimize mechanical properties.
Grain sizes usually vary from submicron to several micrometers, with better grains generally boosting crack strength and resistance to break propagation under unpleasant packing.
Minor ingredients such as magnesium oxide (MgO) are often introduced in trace amounts to prevent unusual grain growth during high-temperature sintering, ensuring consistent microstructure and dimensional stability.
The resulting product displays a Vickers hardness of 1500– 2000 HV, substantially surpassing that of set steel (generally 600– 800 HV), making it extremely resistant to surface destruction in high-wear atmospheres.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear linings are selected mainly for their superior resistance to unpleasant, erosive, and sliding wear devices widespread in bulk product taking care of systems.
They have high compressive stamina (as much as 3000 MPa), good flexural toughness (300– 500 MPa), and excellent stiffness (Young’s modulus of ~ 380 GPa), allowing them to endure extreme mechanical loading without plastic contortion.
Although naturally breakable compared to metals, their low coefficient of rubbing and high surface area solidity decrease fragment adhesion and reduce wear prices by orders of magnitude about steel or polymer-based choices.
Thermally, alumina preserves structural stability as much as 1600 Ā° C in oxidizing ambiences, permitting usage in high-temperature processing environments such as kiln feed systems, boiler ducting, and pyroprocessing devices.
( Alumina Ceramic Wear Liners)
Its low thermal expansion coefficient (~ 8 Ć 10 ā»ā¶/ K) adds to dimensional security throughout thermal cycling, minimizing the danger of fracturing because of thermal shock when appropriately mounted.
In addition, alumina is electrically protecting and chemically inert to most acids, alkalis, and solvents, making it ideal for destructive environments where metal linings would certainly degrade rapidly.
These mixed residential or commercial properties make alumina ceramics excellent for shielding crucial framework in mining, power generation, concrete manufacturing, and chemical handling industries.
2. Production Processes and Layout Combination Strategies
2.1 Forming, Sintering, and Quality Assurance Protocols
The manufacturing of alumina ceramic wear linings involves a series of accuracy production steps created to achieve high density, very little porosity, and consistent mechanical efficiency.
Raw alumina powders are refined through milling, granulation, and forming strategies such as dry pushing, isostatic pushing, or extrusion, depending on the wanted geometry– tiles, plates, pipelines, or custom-shaped sections.
Environment-friendly bodies are then sintered at temperature levels between 1500 Ā° C and 1700 Ā° C in air, promoting densification through solid-state diffusion and accomplishing family member thickness going beyond 95%, commonly coming close to 99% of theoretical density.
Complete densification is critical, as recurring porosity acts as stress concentrators and increases wear and fracture under service problems.
Post-sintering operations might consist of diamond grinding or lapping to accomplish tight dimensional resistances and smooth surface area finishes that minimize friction and fragment trapping.
Each batch goes through rigorous quality assurance, including X-ray diffraction (XRD) for phase evaluation, scanning electron microscopy (SEM) for microstructural analysis, and solidity and bend testing to validate compliance with international standards such as ISO 6474 or ASTM B407.
2.2 Installing Methods and System Compatibility Considerations
Reliable combination of alumina wear liners into industrial tools needs mindful attention to mechanical add-on and thermal growth compatibility.
Common installation methods include adhesive bonding using high-strength ceramic epoxies, mechanical securing with studs or supports, and embedding within castable refractory matrices.
Adhesive bonding is widely used for flat or delicately bent surfaces, providing consistent anxiety distribution and resonance damping, while stud-mounted systems enable simple substitute and are preferred in high-impact zones.
To suit differential thermal expansion in between alumina and metal substratums (e.g., carbon steel), engineered voids, adaptable adhesives, or compliant underlayers are included to prevent delamination or breaking throughout thermal transients.
Developers should likewise consider edge security, as ceramic tiles are susceptible to cracking at exposed corners; solutions include diagonal sides, steel shadows, or overlapping ceramic tile setups.
Appropriate setup ensures long life span and takes full advantage of the safety feature of the liner system.
3. Put On Devices and Efficiency Examination in Service Environments
3.1 Resistance to Abrasive, Erosive, and Impact Loading
Alumina ceramic wear liners master settings controlled by 3 key wear mechanisms: two-body abrasion, three-body abrasion, and fragment disintegration.
In two-body abrasion, difficult particles or surface areas straight gouge the liner surface area, a typical incident in chutes, hoppers, and conveyor changes.
Three-body abrasion involves loose particles caught in between the lining and moving product, resulting in rolling and scraping activity that slowly gets rid of product.
Erosive wear occurs when high-velocity particles strike the surface, specifically in pneumatically-driven conveying lines and cyclone separators.
As a result of its high solidity and reduced crack sturdiness, alumina is most effective in low-impact, high-abrasion circumstances.
It performs extremely well versus siliceous ores, coal, fly ash, and cement clinker, where wear rates can be reduced by 10– 50 times compared to light steel linings.
Nonetheless, in applications including repeated high-energy influence, such as primary crusher chambers, crossbreed systems integrating alumina ceramic tiles with elastomeric backings or metal guards are often employed to take in shock and prevent crack.
3.2 Field Screening, Life Cycle Analysis, and Failing Setting Evaluation
Efficiency assessment of alumina wear liners includes both lab screening and area monitoring.
Standardized examinations such as the ASTM G65 dry sand rubber wheel abrasion test give relative wear indices, while customized slurry erosion rigs simulate site-specific conditions.
In industrial setups, wear price is usually gauged in mm/year or g/kWh, with life span projections based on initial density and observed degradation.
Failing modes consist of surface area polishing, micro-cracking, spalling at sides, and complete floor tile dislodgement due to adhesive degradation or mechanical overload.
Origin evaluation commonly reveals installation mistakes, inappropriate grade choice, or unforeseen influence loads as primary contributors to early failing.
Life cycle expense analysis regularly demonstrates that despite greater initial costs, alumina liners offer superior complete price of possession due to extended substitute periods, decreased downtime, and lower maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Applications Across Heavy Industries
Alumina ceramic wear linings are released across a broad range of industrial markets where product destruction presents functional and economic challenges.
In mining and mineral processing, they shield transfer chutes, mill liners, hydrocyclones, and slurry pumps from abrasive slurries having quartz, hematite, and other difficult minerals.
In nuclear power plant, alumina ceramic tiles line coal pulverizer ducts, central heating boiler ash receptacles, and electrostatic precipitator components exposed to fly ash disintegration.
Cement makers use alumina liners in raw mills, kiln inlet areas, and clinker conveyors to fight the very unpleasant nature of cementitious materials.
The steel sector employs them in blast heating system feed systems and ladle shrouds, where resistance to both abrasion and modest thermal lots is vital.
Also in less traditional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics supply sturdy protection versus chemically aggressive and fibrous products.
4.2 Emerging Fads: Compound Solutions, Smart Liners, and Sustainability
Existing research study concentrates on enhancing the toughness and capability of alumina wear systems through composite style.
Alumina-zirconia (Al Two O TWO-ZrO ā) compounds utilize transformation toughening from zirconia to boost crack resistance, while alumina-titanium carbide (Al ā O SIX-TiC) grades use improved efficiency in high-temperature moving wear.
One more innovation entails embedding sensors within or underneath ceramic liners to keep track of wear progression, temperature, and effect regularity– making it possible for anticipating maintenance and digital double combination.
From a sustainability perspective, the prolonged life span of alumina liners minimizes product usage and waste generation, lining up with circular economy principles in commercial procedures.
Recycling of spent ceramic liners right into refractory aggregates or construction products is additionally being explored to decrease environmental footprint.
To conclude, alumina ceramic wear liners stand for a cornerstone of contemporary industrial wear protection technology.
Their outstanding firmness, thermal stability, and chemical inertness, combined with mature manufacturing and installation practices, make them vital in combating product destruction throughout hefty sectors.
As product scientific research breakthroughs and digital monitoring ends up being more integrated, the future generation of smart, resilient alumina-based systems will certainly better enhance functional efficiency and sustainability in abrasive environments.
