1. Make-up and Architectural Residences of Fused Quartz
1.1 Amorphous Network and Thermal Security

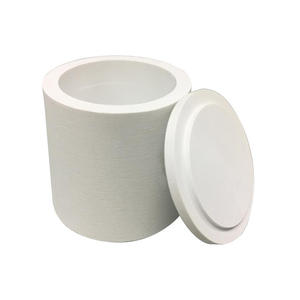

(Quartz Crucibles)
Quartz crucibles are high-temperature containers made from merged silica, an artificial kind of silicon dioxide (SiO TWO) stemmed from the melting of natural quartz crystals at temperature levels surpassing 1700 ° C.
Unlike crystalline quartz, integrated silica has an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which conveys outstanding thermal shock resistance and dimensional security under rapid temperature changes.
This disordered atomic framework prevents bosom along crystallographic planes, making merged silica less vulnerable to cracking during thermal cycling compared to polycrystalline ceramics.
The material displays a low coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), among the most affordable amongst design products, enabling it to endure extreme thermal gradients without fracturing– an important home in semiconductor and solar battery manufacturing.
Integrated silica additionally keeps superb chemical inertness versus a lot of acids, liquified metals, and slags, although it can be slowly engraved by hydrofluoric acid and hot phosphoric acid.
Its high conditioning factor (~ 1600– 1730 ° C, depending on purity and OH content) allows continual operation at raised temperatures required for crystal growth and steel refining processes.
1.2 Pureness Grading and Trace Element Control
The performance of quartz crucibles is highly depending on chemical pureness, especially the focus of metallic pollutants such as iron, salt, potassium, aluminum, and titanium.
Also trace quantities (parts per million level) of these contaminants can migrate right into liquified silicon throughout crystal development, breaking down the electrical buildings of the resulting semiconductor material.
High-purity qualities utilized in electronics manufacturing normally contain over 99.95% SiO ₂, with alkali steel oxides restricted to less than 10 ppm and change steels listed below 1 ppm.
Contaminations stem from raw quartz feedstock or handling equipment and are lessened via cautious choice of mineral resources and purification methods like acid leaching and flotation protection.
Furthermore, the hydroxyl (OH) material in fused silica affects its thermomechanical behavior; high-OH types offer far better UV transmission however reduced thermal security, while low-OH variations are preferred for high-temperature applications due to minimized bubble development.

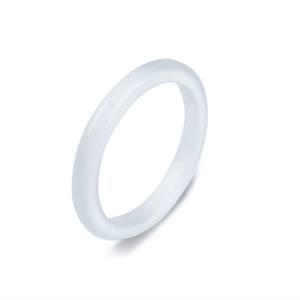

( Quartz Crucibles)
2. Production Process and Microstructural Layout
2.1 Electrofusion and Forming Strategies
Quartz crucibles are mostly created by means of electrofusion, a procedure in which high-purity quartz powder is fed into a turning graphite mold and mildew within an electric arc furnace.
An electric arc created in between carbon electrodes melts the quartz particles, which strengthen layer by layer to form a smooth, thick crucible shape.
This approach creates a fine-grained, uniform microstructure with marginal bubbles and striae, essential for uniform warmth distribution and mechanical honesty.
Alternative approaches such as plasma fusion and flame fusion are utilized for specialized applications needing ultra-low contamination or certain wall surface density profiles.
After casting, the crucibles undertake controlled cooling (annealing) to ease internal stresses and stop spontaneous fracturing throughout solution.
Surface area ending up, including grinding and polishing, makes certain dimensional precision and minimizes nucleation websites for unwanted crystallization throughout usage.
2.2 Crystalline Layer Design and Opacity Control
A specifying attribute of contemporary quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the engineered inner layer structure.
Throughout manufacturing, the inner surface is often treated to promote the development of a thin, controlled layer of cristobalite– a high-temperature polymorph of SiO TWO– upon first heating.
This cristobalite layer serves as a diffusion barrier, reducing direct communication in between molten silicon and the underlying integrated silica, thus minimizing oxygen and metal contamination.
Additionally, the visibility of this crystalline phase improves opacity, enhancing infrared radiation absorption and advertising even more uniform temperature circulation within the thaw.
Crucible developers very carefully stabilize the density and continuity of this layer to prevent spalling or breaking due to volume adjustments throughout stage transitions.
3. Practical Efficiency in High-Temperature Applications
3.1 Duty in Silicon Crystal Development Processes
Quartz crucibles are indispensable in the production of monocrystalline and multicrystalline silicon, acting as the key container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped into molten silicon kept in a quartz crucible and slowly pulled upward while rotating, allowing single-crystal ingots to develop.
Although the crucible does not directly contact the expanding crystal, interactions in between molten silicon and SiO ₂ wall surfaces lead to oxygen dissolution right into the thaw, which can influence service provider life time and mechanical stamina in completed wafers.
In DS processes for photovoltaic-grade silicon, large-scale quartz crucibles allow the controlled air conditioning of thousands of kilos of molten silicon into block-shaped ingots.
Right here, finishes such as silicon nitride (Si four N ₄) are applied to the internal surface to avoid attachment and assist in easy launch of the strengthened silicon block after cooling down.
3.2 Degradation Mechanisms and Life Span Limitations
Despite their robustness, quartz crucibles degrade during duplicated high-temperature cycles because of numerous interrelated devices.
Thick flow or contortion takes place at prolonged direct exposure over 1400 ° C, resulting in wall thinning and loss of geometric integrity.
Re-crystallization of fused silica into cristobalite produces internal stresses as a result of volume development, potentially causing fractures or spallation that infect the thaw.
Chemical erosion arises from decrease responses in between molten silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), producing unpredictable silicon monoxide that runs away and damages the crucible wall.
Bubble formation, driven by trapped gases or OH teams, additionally endangers architectural toughness and thermal conductivity.
These destruction paths restrict the variety of reuse cycles and necessitate exact process control to make the most of crucible life-span and product return.
4. Arising Technologies and Technical Adaptations
4.1 Coatings and Compound Alterations
To improve performance and sturdiness, progressed quartz crucibles integrate functional finishes and composite frameworks.
Silicon-based anti-sticking layers and drugged silica coverings improve launch features and lower oxygen outgassing during melting.
Some makers integrate zirconia (ZrO TWO) fragments into the crucible wall to raise mechanical strength and resistance to devitrification.
Study is ongoing into totally transparent or gradient-structured crucibles made to optimize induction heat transfer in next-generation solar furnace designs.
4.2 Sustainability and Recycling Challenges
With enhancing demand from the semiconductor and photovoltaic or pv sectors, sustainable use quartz crucibles has actually ended up being a priority.
Used crucibles contaminated with silicon deposit are tough to recycle because of cross-contamination dangers, resulting in substantial waste generation.
Initiatives concentrate on establishing recyclable crucible liners, improved cleaning methods, and closed-loop recycling systems to recoup high-purity silica for secondary applications.
As gadget effectiveness demand ever-higher product purity, the role of quartz crucibles will continue to advance with advancement in products scientific research and procedure design.
In recap, quartz crucibles stand for an essential interface between raw materials and high-performance digital items.
Their distinct combination of purity, thermal resilience, and structural layout enables the construction of silicon-based technologies that power modern-day computer and renewable resource systems.
