Intro to Light Weight Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic material that has gained extensive recognition for its extraordinary thermal conductivity, electric insulation, and mechanical security at elevated temperatures. With a hexagonal wurtzite crystal structure, AlN displays an unique combination of buildings that make it the most perfect substrate material for applications in electronics, optoelectronics, power components, and high-temperature settings. Its capacity to effectively dissipate warm while preserving superb dielectric strength placements AlN as a superior choice to conventional ceramic substratums such as alumina and beryllium oxide. This article discovers the basic characteristics of light weight aluminum nitride ceramics, looks into fabrication strategies, and highlights its important duties across innovative technological domains.

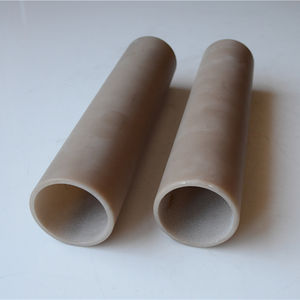

(Aluminum Nitride Ceramics)
Crystal Structure and Basic Feature
The performance of light weight aluminum nitride as a substrate product is mainly dictated by its crystalline structure and inherent physical buildings. AlN embraces a wurtzite-type lattice composed of rotating aluminum and nitrogen atoms, which adds to its high thermal conductivity– typically surpassing 180 W/(m · K), with some high-purity examples achieving over 320 W/(m · K). This worth significantly surpasses those of other widely used ceramic products, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal efficiency, AlN possesses a vast bandgap of approximately 6.2 eV, leading to excellent electric insulation homes also at heats. It additionally demonstrates low thermal development (CTE ≈ 4.5 × 10 ⁻⁶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimum suit for semiconductor device packaging. Additionally, AlN exhibits high chemical inertness and resistance to thaw steels, improving its suitability for harsh settings. These mixed features establish AlN as a prominent prospect for high-power digital substrates and thermally took care of systems.
Fabrication and Sintering Technologies
Making top notch aluminum nitride porcelains calls for specific powder synthesis and sintering strategies to attain dense microstructures with marginal impurities. Due to its covalent bonding nature, AlN does not conveniently compress through traditional pressureless sintering. As a result, sintering aids such as yttrium oxide (Y ₂ O ₃), calcium oxide (CaO), or unusual planet aspects are commonly contributed to advertise liquid-phase sintering and improve grain boundary diffusion.
The fabrication process normally starts with the carbothermal decrease of light weight aluminum oxide in a nitrogen ambience to synthesize AlN powders. These powders are then crushed, shaped through approaches like tape casting or shot molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Hot pushing or stimulate plasma sintering (SPS) can even more improve density and thermal conductivity by reducing porosity and advertising grain alignment. Advanced additive manufacturing strategies are also being explored to fabricate complex-shaped AlN elements with customized thermal management capabilities.
Application in Digital Product Packaging and Power Modules
Among the most noticeable uses of light weight aluminum nitride porcelains is in electronic packaging, especially for high-power gadgets such as shielded gate bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power densities raise in modern-day electronics, reliable warm dissipation becomes important to make certain integrity and durability. AlN substratums give an optimum option by combining high thermal conductivity with superb electric isolation, protecting against brief circuits and thermal runaway conditions.
Furthermore, AlN-based direct bonded copper (DBC) and energetic steel brazed (AMB) substrates are significantly utilized in power component styles for electric automobiles, renewable energy inverters, and commercial motor drives. Compared to traditional alumina or silicon nitride substrates, AlN supplies faster warm transfer and much better compatibility with silicon chip coefficients of thermal expansion, thus decreasing mechanical stress and anxiety and boosting overall system efficiency. Ongoing research study aims to improve the bonding strength and metallization methods on AlN surface areas to more broaden its application range.
Usage in Optoelectronic and High-Temperature Devices
Past electronic product packaging, aluminum nitride ceramics play an important role in optoelectronic and high-temperature applications as a result of their transparency to ultraviolet (UV) radiation and thermal security. AlN is extensively utilized as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications calling for sterilization, sensing, and optical interaction. Its large bandgap and reduced absorption coefficient in the UV range make it an excellent candidate for supporting aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s capability to operate dependably at temperatures going beyond 1000 ° C makes it ideal for usage in sensing units, thermoelectric generators, and elements revealed to extreme thermal tons. In aerospace and protection fields, AlN-based sensing unit bundles are utilized in jet engine tracking systems and high-temperature control devices where standard products would certainly stop working. Continual improvements in thin-film deposition and epitaxial development methods are expanding the capacity of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Ecological Stability and Long-Term Integrity
A vital factor to consider for any type of substrate material is its long-term reliability under operational stress and anxieties. Light weight aluminum nitride shows premium ecological security contrasted to many various other porcelains. It is highly resistant to deterioration from acids, alkalis, and molten metals, guaranteeing toughness in aggressive chemical settings. Nonetheless, AlN is vulnerable to hydrolysis when subjected to wetness at elevated temperatures, which can weaken its surface area and minimize thermal efficiency.
To alleviate this problem, protective finishings such as silicon nitride (Si two N FOUR), aluminum oxide, or polymer-based encapsulation layers are commonly related to boost dampness resistance. Additionally, cautious securing and product packaging techniques are executed throughout device setting up to keep the stability of AlN substratums throughout their service life. As environmental regulations end up being a lot more rigorous, the safe nature of AlN likewise places it as a recommended choice to beryllium oxide, which postures health threats during handling and disposal.
Final thought
Aluminum nitride porcelains represent a course of advanced products uniquely suited to address the expanding demands for efficient thermal administration and electrical insulation in high-performance digital and optoelectronic systems. Their exceptional thermal conductivity, chemical stability, and compatibility with semiconductor modern technologies make them the most perfect substratum material for a vast array of applications– from automotive power modules to deep UV LEDs and high-temperature sensors. As manufacture innovations continue to progress and cost-effective production techniques mature, the fostering of AlN substrates is anticipated to climb dramatically, driving innovation in next-generation digital and photonic gadgets.
