1. Material Principles and Structural Feature
1.1 Crystal Chemistry and Polymorphism

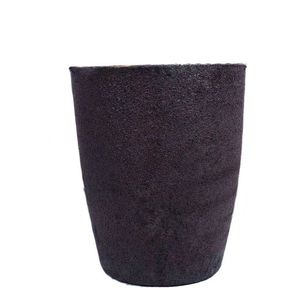

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms organized in a tetrahedral lattice, forming one of the most thermally and chemically robust products known.
It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal structures being most appropriate for high-temperature applications.
The solid Si– C bonds, with bond energy surpassing 300 kJ/mol, provide outstanding hardness, thermal conductivity, and resistance to thermal shock and chemical assault.
In crucible applications, sintered or reaction-bonded SiC is preferred as a result of its capacity to maintain architectural honesty under extreme thermal slopes and corrosive liquified atmospheres.
Unlike oxide ceramics, SiC does not go through disruptive stage shifts approximately its sublimation factor (~ 2700 ° C), making it suitable for sustained procedure above 1600 ° C.
1.2 Thermal and Mechanical Performance
A specifying attribute of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which promotes consistent warm circulation and decreases thermal stress and anxiety throughout rapid heating or cooling.
This residential property contrasts greatly with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are prone to breaking under thermal shock.
SiC also exhibits outstanding mechanical toughness at elevated temperatures, preserving over 80% of its room-temperature flexural strength (as much as 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal development (~ 4.0 × 10 ⁻⁶/ K) further boosts resistance to thermal shock, an essential factor in duplicated biking between ambient and operational temperatures.
Furthermore, SiC shows superior wear and abrasion resistance, ensuring lengthy life span in environments including mechanical handling or turbulent melt circulation.
2. Production Methods and Microstructural Control

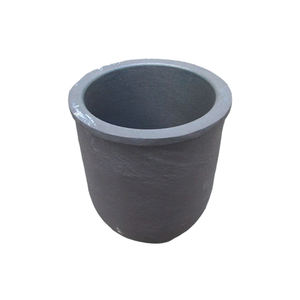

( Silicon Carbide Crucibles)
2.1 Sintering Strategies and Densification Methods
Commercial SiC crucibles are mainly produced with pressureless sintering, reaction bonding, or hot pressing, each offering distinctive benefits in cost, pureness, and efficiency.
Pressureless sintering entails compacting great SiC powder with sintering aids such as boron and carbon, complied with by high-temperature therapy (2000– 2200 ° C )in inert environment to achieve near-theoretical density.
This approach returns high-purity, high-strength crucibles ideal for semiconductor and advanced alloy handling.
Reaction-bonded SiC (RBSC) is generated by penetrating a permeable carbon preform with liquified silicon, which responds to create β-SiC sitting, leading to a composite of SiC and residual silicon.
While slightly lower in thermal conductivity because of metal silicon additions, RBSC supplies superb dimensional stability and lower manufacturing cost, making it popular for massive commercial usage.
Hot-pressed SiC, though much more pricey, gives the highest possible thickness and purity, booked for ultra-demanding applications such as single-crystal development.
2.2 Surface Quality and Geometric Accuracy
Post-sintering machining, including grinding and washing, makes certain accurate dimensional tolerances and smooth internal surface areas that lessen nucleation sites and decrease contamination risk.
Surface area roughness is carefully managed to stop thaw bond and assist in simple launch of solidified materials.
Crucible geometry– such as wall surface thickness, taper angle, and bottom curvature– is enhanced to stabilize thermal mass, architectural toughness, and compatibility with heater heating elements.
Custom-made layouts accommodate details melt volumes, heating accounts, and material sensitivity, guaranteeing optimal efficiency throughout diverse industrial procedures.
Advanced quality assurance, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic screening, confirms microstructural homogeneity and lack of flaws like pores or fractures.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Hostile Settings
SiC crucibles exhibit phenomenal resistance to chemical attack by molten steels, slags, and non-oxidizing salts, outperforming typical graphite and oxide porcelains.
They are steady touching molten light weight aluminum, copper, silver, and their alloys, standing up to wetting and dissolution as a result of reduced interfacial power and formation of safety surface area oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles stop metallic contamination that can break down digital homes.
However, under very oxidizing conditions or in the visibility of alkaline changes, SiC can oxidize to form silica (SiO ₂), which may respond better to develop low-melting-point silicates.
As a result, SiC is finest suited for neutral or lowering environments, where its security is taken full advantage of.
3.2 Limitations and Compatibility Considerations
In spite of its robustness, SiC is not globally inert; it reacts with certain molten materials, specifically iron-group metals (Fe, Ni, Carbon monoxide) at heats with carburization and dissolution procedures.
In molten steel processing, SiC crucibles deteriorate rapidly and are consequently stayed clear of.
In a similar way, alkali and alkaline earth steels (e.g., Li, Na, Ca) can minimize SiC, releasing carbon and creating silicides, restricting their usage in battery product synthesis or reactive steel spreading.
For liquified glass and porcelains, SiC is normally compatible but may introduce trace silicon into very sensitive optical or digital glasses.
Comprehending these material-specific interactions is essential for picking the ideal crucible kind and making certain process purity and crucible longevity.
4. Industrial Applications and Technical Advancement
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are essential in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar cells, where they withstand prolonged exposure to thaw silicon at ~ 1420 ° C.
Their thermal stability makes certain uniform crystallization and reduces dislocation thickness, directly influencing photovoltaic or pv effectiveness.
In foundries, SiC crucibles are used for melting non-ferrous metals such as light weight aluminum and brass, supplying longer life span and reduced dross formation compared to clay-graphite alternatives.
They are also employed in high-temperature lab for thermogravimetric analysis, differential scanning calorimetry, and synthesis of advanced porcelains and intermetallic compounds.
4.2 Future Patterns and Advanced Product Combination
Emerging applications consist of making use of SiC crucibles in next-generation nuclear materials testing and molten salt reactors, where their resistance to radiation and molten fluorides is being reviewed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O THREE) are being applied to SiC surfaces to better boost chemical inertness and protect against silicon diffusion in ultra-high-purity procedures.
Additive production of SiC components using binder jetting or stereolithography is under advancement, promising complicated geometries and fast prototyping for specialized crucible layouts.
As need expands for energy-efficient, long lasting, and contamination-free high-temperature handling, silicon carbide crucibles will certainly stay a foundation technology in advanced products manufacturing.
To conclude, silicon carbide crucibles represent a vital allowing part in high-temperature industrial and clinical procedures.
Their exceptional mix of thermal stability, mechanical stamina, and chemical resistance makes them the product of choice for applications where efficiency and integrity are paramount.
